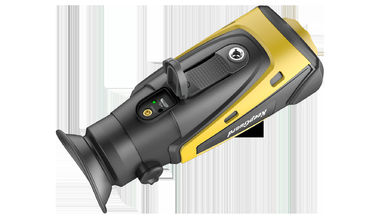

Small Size Thermal Imaging Monocular Battery Operated One Hand Operation
thermal infrared monocular
,infrared thermal scope
Small Size Thermal Imaging Monocular Battery Operated One Hand Operation
Thermal Imaging Monocular Selling points
• Cheap prices with good quality
• Small size, one hand operation
• Real time video transfer via wifi to smartphone
• One meter drop resistant
• Easy operation with only 4 shortcut keys
• IP66
Thermal Imaging Monocular Application
Outdoor /Patrol/ Search & Rescue/Personal Security
Thermal Imaging Monocular Parameters
Item | KG510IR N1 | KG510IR N1 WIFI | KG510IR N2 | KG510IR N2 WIFI |
Detector | ||||
Detector Type | 400 ×300@17 μm | |||
Spectral Range | 8μm~14 μm | |||
Lens | ||||
Focus | 19mm | 25mm | ||
Focusing | free | Manual | ||
FOV | 19.0°×14.5° | 14.6°×11.1° | ||
Screen | Colorful 0.2″LCOS | |||
Viewfinder | Monocular, diopter adjustable±4 | |||
Image | ||||
Frame | 50Hz | |||
Digital Zoom | ×2, ×4 | |||
Color Palette | Black hot, white hot, red hot 1, red hot 2, red hot 3 | |||
Fuctions | ||||
Photograph | × | × | × | × |
Additional functions | Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Cross cursor | √ | √ | √ | √ |
Image enhancement | × | √ | × | √ |
Wi -Fi | × | √ | × | √ |
Zoom | √ | √ | √ | √ |
Freeze | √ | × | √ | × |
Charging indicator | √ | √ | √ | √ |
Active indicator | √ | √ | × | √ |
Power | ||||
Battery | Internal Li -ion battery,3.7V,3200mAh | |||
Working Time | ≥5h | |||
Adapter | Standard USB power adapter, max 10W | |||
Interface | ||||
USB | Charging | |||
Video Output | MCX Connector,PAL /NTSC | |||
Environment Characteristics | ||||
Working Temperature | -10℃~50℃ | |||
Storage Temperature | -30℃~60℃ | |||
Humidity | 10%~95% | |||
Shock | 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6 | |||
Encapsulation | IP66 | |||
Drop | 1m drop | N/A | ||
Physical Parameter | ||||
Weight | 350g | 375g | ||
Size | 160mm ×67mm ×62mm | 168mm ×67mm ×62mm | ||
Package | ||||
Standard accessories | thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual | |||
Optional accessories | N/A | 40mm extender lens (FOV:9.3°×7.0°) | ||
Detection Range | ||||
Human :1.8m ×0.5m | 500m | 700m | ||
Vehicle:2.3m ×2.3m | 1300m | 1700m | ||
Recognition Range | ||||
Human :1.8m ×0.5m | 300m | 350m | ||
Vehicle:2.3m ×2.3m | 500m | 700m |
Thermal Imaging Monocular Details
