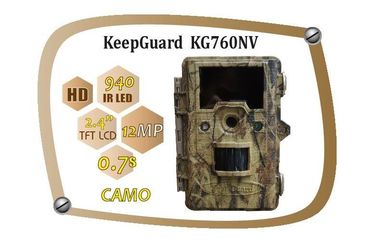

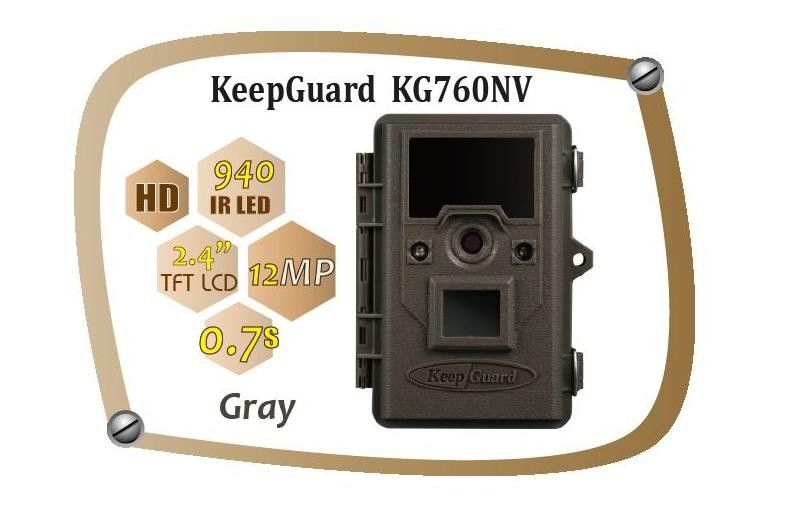

12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV

12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV

    • 12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV
    • 12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV
    • 12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV
  • 12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: KeepGuard

    Payment & Shipping Terms:

    Minimum Order Quantity: 20pcs
    Price: Negotiable
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description

    12MP Infrared Digital Wildlife Camera for Scouting , KeepGuard 760NV
    Quick Facts
    1. 12MP, Camera/Video
    2. Trigger time<0.7s
    3. Red Glow IR LEDs
    4. Super bettery life
    5. Waterproof IP54
    6. Certificates:FCC;RoHS;CE;WEEE
    The KeepGuard KG760 is a very classic red glow infrared trail camera in the market . It has been around for several years now and have excelled in wildlife observation, bird watching and security surveillance. KeepGuard KG760 is very popular in market.
    Detection Circuit
    It is tough to improve much over the detection circuit of the 2012 keepGuard KG760NV Cam.  In 2013, it remains a very long detection range(20m-25m).
    The trigger speed is 0.7 seconds,which is one of the fastest trigger on the market. The recovery is 3.0 seconds. This remains one of the finest recovery times on the market.
    The PIR sensor, which controls the detection zone, was improved for 2013.  The detection range is at least 60 ft in most cases.
    Overall, this is an excellent detection circuit without a weakness.  It can provide adequate coverage in any camera trap station you can think up.
    Picture Quality
    The day pictures from the KeepGuard are very nice.the maximum pixels can reach 12MP. Color, clarity and focus are exactly what we like to see.
    The night pictures are surprisingly clear and bright, especially for this no glow trail camera.You can click on any of the images below to see exactly what we are talking about
    Battery Life
    Battery life has long been one of the biggest strengths of the KeepGuard Trail Cams.  This camera is no different.  Low stand-by current and low day and night power consumptions.  This camera is a rock star when it comes to battery consumption.

    stand-by current

    Daytime Current Draw

    Nighttime Current Draw

    <0.28 ma

    <200 ma

    <800 ma

    ma = milliamps
    Operating on 8 AA batteries, this camera will last a long time in the field. With lithium batteries, you can expect anywhere from 8-12 months in the field. Alkaline batteries do work in this camera,however,from their low tolerance for cold weather we always use nimh rechargeables or lithium batteries.Depending on your preference,all three battery types will work.
    Ease of Use
    You won't have a problem setting the 2013 KeepGuard KG860NV HD up.  The options are simple and user-friendly. At the same time,It has more programming (timing) options than the competition.
    Durability is still outstanding.  We have experienced minimal returns on this unit and in years past the KeepGuard cameras had very low return rates.  All in all, the durability of the 2013 KeepGuard KG760NV is outstanding.
    With the latest firmware in this camera, we believe the 2013 KeepGuard KG760NV is still a tremendous value.  Quick trigger time, excellent recovery, top-notch battery life and durability to last.
    This camera is a workhorse, throw in a set of batteries and an SD card and let this camera go to work for you.

    Image Sensor

    5Megapixel Color CMOS


    F=7.36; FOV=40°Auto IR-Cut-Remove(at night)

    IR-Flash Range


    Display Screen

    1.5 inch Std B&W Display;2.4 inch Color Display

    Memory Card

    SD or SDHC Card, Maximum capacity 32GB

    Internal RAM


    Image Size

    12MP(4000×3000);8MP(3264×2448);5M(2592X1944);  3M (2048X1536);

    Video Size

    1280×720; 640×480;320×240;

    PIR Sensitivity

    PIR with 3sensitivity levels:High/ Normal/ Low



    Response Time

    0.7 s

    Triggering Interval

    1sec-60min programmable

    Shutter Speed


    Shooting Numbers

    1-3 programmable

    Video Length

    5-60sec. programmable

    Power Supply

    8×AA recommended;4×AA as emergency power

    Stand-by current


    Power Consumption

    <200mA(+600mA when IR-LED Lighted)

    Timed Scan


    Temperature Display




    Moon Display


    Audio Video


    User Interface

    LCD display


    TV out(NTSC/PAL);USB;SD card holder; 6V DC external


    Strap;1/4-20 attachment

    Operating Temperature

    -20-60℃(Storage temperature:-30-70℃)

    Operating Humidity


    Security Authentication


    1. A. Trail/Game camera for hunting or scouting
       B. Motion-Trigger Camera for Home, Office and Commune
       C. All other In/Outdoor Surveillance where Invasion Evidence
    2. Location
       Forest, Garden, Office, Home and any other place
