INTRODUCTION

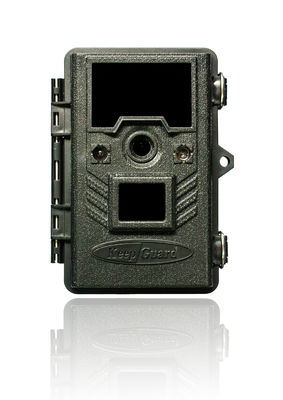

This KEEPGUARD CAM is the best-selling scouting camera which is designed for activity and is resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips.
Loading Batteries

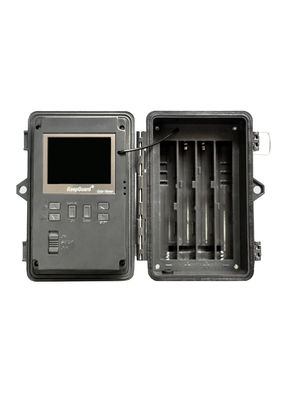

After opening the two latches on the right side of the camera, you will see that it has 8 battery slots. For maximum battery life, we recommend using 8 lithium AA or alkaline AA batteries.
Using an External Power Source
Optionally, you can connect an external 6V DC power source to the "DC In" jack at the bottom of camera. It is recommended to use a power source with a current output greater than 1000mA. Please make sure that the polarity is correct.
Inserting SD Card
This camera have 32MB internal memory, which is for camera upgrade. Insert the SD card ( OFF mode ) before beginning to operate the camera. SD card is supported up to maximum 32GB capacity.
Formatting the SD card:
Formatting the SD card removes all files on the memory card and prepares for camera. Press the MENU, then RIGHT or LEFT key several more times to move to the “Format” parameter setting menu. Press OK key to enter sub-menu, Press the UP or DOWN key to highlight YES and press OK.
THE OFF, ON, and SETUP MODES
The KEEPGUARD CAM has three basic operational modes:
OFF Mode
The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries, or transporting the device. You will use OFF mode if you connect the camera to a computer′s USB port to download your photos/videos.
ON Mode
Once in ON mode no manual controls are needed or possible (the control keys have no effect). The KEEPGUARD CAM will take photos or videos automatically (according to its current parameter settings) when it is triggered by the PIR sensor′s detection of activity in the area it covers.
SETUP Mode
In the SETUP mode you can check and change the settings of the KEEPGUARD CAM with the help of built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.
KG690 Technical Specifications
| Image Sensor | 5Megapixel Color CMOS |
| Lens | F=7.45; FOV=55°Auto IR-Cut-Remove(at night) |
| IR-Flash Range | 60'-75'(20m-25m) |
| Display Screen | 2.4 inch Color Display |
| Memory Card | SD or SDHC Card, Maximum capacity 32GB |
| Internal RAM | 32M |
| Image Size | 8M (3264×2448) ; 5M (2592X1944) ; 3M (2048X1536) ; |
| Video Size | 720×480; 640×480;320×240； |
| PIR Sensitivity | PIR with 4sensitivity levels :High/ Normal/ Low/Auto |
| Operation | Day/Night |
| Response Time | 0.7 s |
| Triggering Interval | 1sec-60min programmable |
| Shutter Speed | 1/10-1/2000sec. |
| Shooting Numbers | 1-3 programmable |
| Video Length | 5-60sec. programmable |
| Power Supply | 8×AA recommended;4×AA as emergency power |
| Stand-by current | <0.28mA |
| Power Consumption | <200mA(+800mA when IR-LED Lighted) |
| Timed Scan | programmable |
| Temperature Display | programmable |
| Password | programmable |
| Moon Display | programmable |
| Audio Video | programmable |
| User Interface | LCD display |
| Interface | TV out(NTSC/PAL);USB;SD card holder; 6V DC external |

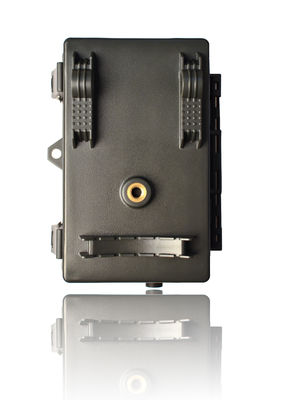

| Security | Strap;1/4-20 attachment |
| Operating Temperature | -20-60℃(Storage temperature:-30-70℃) |
| Operating Humidity | 5%-90% |
| Security Authentication | FCC/CE/RoHs/WEEE |
