186FT 10 x IR Flashlight Night Vision Rifle Scopes 20x60mm Escape Zoom

186FT 10 x IR Flashlight Night Vision Rifle Scopes 20x60mm Escape Zoom

    • 186FT 10 x IR Flashlight Night Vision Rifle Scopes 20x60mm Escape Zoom
    • 186FT 10 x IR Flashlight Night Vision Rifle Scopes 20x60mm Escape Zoom
  • 186FT 10 x IR Flashlight Night Vision Rifle Scopes 20x60mm Escape Zoom

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: KeepGuard
    Model Number: KG870

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Material: Pvc Color: CAMO
    Range: 20-25M Weight: 0.65

    INTRODUCTION

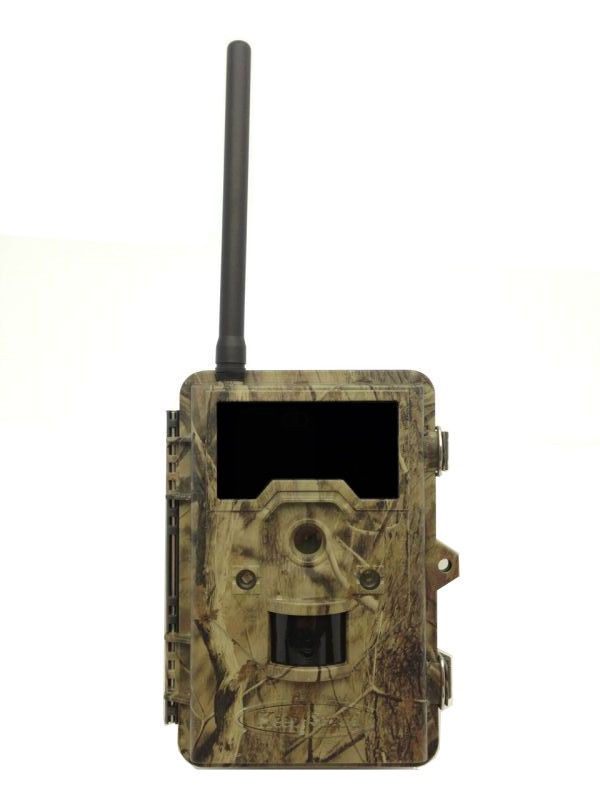

    The KEEPGUARD WIRELESS CAM is the latest generation of the KEEPGUARD CAM. It contains a GSM cellular module which can transmit pictures directly from camera to your cellular phone or email box. It supports MMS/SMTP/E-mail via GSM network. It supports four network bands: 850MHz, 900MHz, 1800MHz, and 1900MHz. Video can not be sent via cellular network.186FT 10 x IR Flashlight Night Vision Rifle Scopes 20x60mm Escape Zoom
    Loading Batteries
    After opening the two latches on the right side of the camera, you will see that it has 12 battery slots. For maximum battery life, we recommend using 12 lithium AA or alkaline AA batteries.
    Using an External Power Source
    Optionally, you can connect an external 9V DC power source to the "DC In" jack at the bottom of camera. It is recommended to use a power source with a current output greater than 1000mA. Please make sure that the polarity is correct.
    Inserting SD Card
    This camera have 32MB internal memory, which is for camera upgrade. Insert the SD card ( OFF mode ) before beginning to operate the camera. SD card is supported up to maximum 32GB capacity.
    Formatting the SD card:
    Formatting the SD card removes all files on the memory card and prepares for camera. Press the MENU, then RIGHT or LEFT key several more times to move to the “Format” parameter setting menu. Press OK key to enter sub-menu, Press the UP or DOWN key to highlight YES and press OK.
    Installing SIM card
    Camera will send pictures to GSM provider, the SIM card in the camera must be from a GSM provider. Make sure your camera mode selector switch is in the OFF position. Insert the SIM card into the card slot with its metal contacts upwards (see right) until it bottoms out and then release. It will snap in place. To remove the SIM card, press on the card until it clicks and then release it.
    THE OFF, ON, and SETUP MODES
    The KEEPGUARD WIRELESS CAM has three basic operational modes:
    OFF Mode
    The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries, or transporting the device. You will use OFF mode if you connect the camera to a computer′s USB port to download your photos/videos.
    ON Mode
    Once in ON mode no manual controls are needed or possible (the control keys have no effect). The KEEPGUARD WIRELESS CAM will take photos or videos automatically (according to its current parameter settings) when it is triggered by the PIR sensor′s detection of activity in the area it covers.
    SETUP Mode
    In the SETUP mode you can check and change the settings of the KEEPGUARD WIRELESS CAM with the help of built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.
    Fig. 1: SETUP Information Screen

    SETUP Mode Shortcut Keys
    1.First switch to the SETUP Mode.
    2.Press MENU button.
    3.Press RIGHT or LEFT key scrolls to the next or previous parameter.
    4.Press UP or DOWN key to select setting for the currently parameter.
    5.Press OK to save the new setting.
    6.Then switch to ON Mode to take photos or videos.

    Wireless Setting Parameters Guide
    The camera provides two solutions, i.e. MMS or SMTP, to send the pictures to cell phone and email box.
    MMS
    If MMS is selected, pictures will be sent to the preset phone (maximum 5 numbers allowed) or email (maximum 5 addresses allowed) or both phone number and email address.
    1.Auto setting
    a)Country:Choose your Country or Origin in the drop down menu
    b)Provider Select:Choose your provider in the drop down menu
    2.Manual Setting
    If the Country or Provider’s information is not included in the “Auto Setting”, you must select “Manual Setting” and set the parameters for the URL, APN, IP and Port according to the settings the service provider makes available, please contact network service provider if you are not familiar with these settings.
    3.Phone No
    Enter up to 5 different phone numbers in the Phone NO field. You will need to start every phone number with no spaces or dashes.
    4.Email Address
    Enter up to 5 different e-mail addresses in the Email field.
    SMTP
    If SMTP is selected, pictures will be sent from one preset sending email address to one or multiple email addresses via GPRS/HSPA network using the SIM card data plan.
    1.Auto setting
    a)Country:Choose your Country or Origin in the drop down menu.
    b)Provider Select:Choose your provider in the drop down menu.
    2.Web Mail: Choose a Web Mail you used as a sending email, it will auto-fill the APN,Server,and Port in the Manual Setting.
    3.Manual Setting: If the Country, Provider or/and WebMail’s information are not included in the “Auto Setting”, you must select Manual Setting and set the parameters.
    4.Email Address: Choose this option if you only want the photos sent to chosen e-mail addresses.Enter up to 5 different e-mail addresses in the Email field.
    WIRELESS TESTING
    After you finish the MMS or SMTP Setting, you can make a “Wireless Testing” for KG870NV.
    1.Send a test photo
    1)Put the power switch in SETUP position to enter the preview screen, set the camera in Camera Mode.
    2)Press the LEFT key to take a picture after the camera has searched the mobile signal.
    3)The LCD screen will show a step bar. Once it displays “Wireless test over, Send Success”, you have successfully sent your first photo and your camera is ready to take Photos.
    2.Send a command code
    1)Put the power switch in SETUP/ON position to enter the preview screen.
    2)Use the Command Phone send a code #140#, the camera will take a picture after the camera has searched the mobile signal.
    3)The LCD screen will show a step bar. Once it displays “Wireless test over, Send Success”, you have successfully sent your first photo and your camera is ready to take Photos.


    SMS Command code table
    ItemSetSMS Command code
    ModeCamera Mode#100#0#
    Video Mode#100#1#
    Image Size3MP#101#3#
    5MP#101#5#
    8MP#101#8#
    12MP#101#12#
    IR LED ControlLow#104#1#
    Medium#104#2#
    High#104#3#
    Video Size640X480#106#480#
    848X480#106#480#
    1280X720#106#720#
    1920X1080#106#1080#
    Sensor LevelAuto#109#0#
    Low#109#1#
    Medium#109#2#
    High#109#3#
    Phone numberAdd Phone number#120#1234567890#
    Delete Phone Number#121#1234567890#
    Email addressAdd Email address#130#abc@gmail.com#
    Delete Email address#131#abc@gmail.com#
    Acquire ImageImage transmission#140#
    GPS LocationGPS Location:E89N89#145#
    Image SendImage Send ON#150#
    Image Send OFF#160#
    Set WirelessWireless ON#180#
    Wireless OFF#181#
    Awake ON#135#
    ECO(Sleep) ON#136#
