KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting

KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting

    • KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting
    • KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting
    • KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting
  • KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: KeepGuard
    Certification: CE,ROHS, FCC
    Model Number: KG690

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Gift box
    Delivery Time: 5-10 days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description

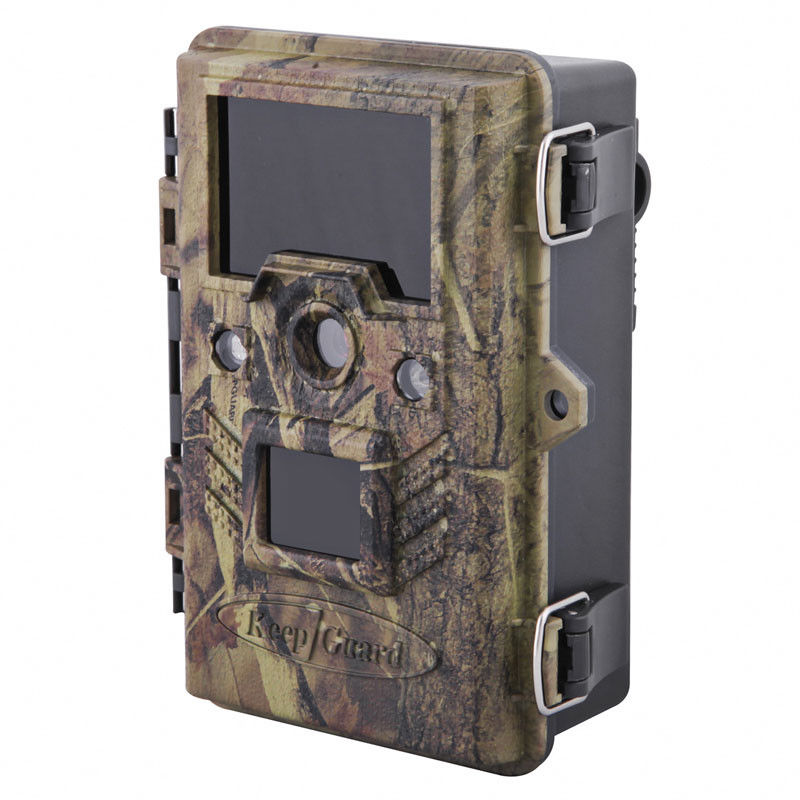

    This KEEPGUARD CAM is the best-selling scouting camera which is designed for activity and is resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips.KN100 / KN115 Infrared Night Vision Monoculars for Animal Hunting

    Loading Batteries

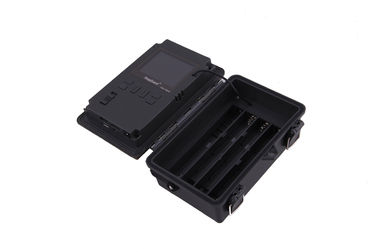

    After opening the two latches on the right side of the camera, you will see that it has 8 battery slots. For maximum battery life, we recommend using 8 lithium AA or alkaline AA batteries.

    Using an External Power Source

    Optionally, you can connect an external 6V DC power source to the "DC In" jack at the bottom of camera. It is recommended to use a power source with a current output greater than 1000mA. Please make sure that the polarity is correct.

    Inserting SD Card

    This camera have 32MB internal memory, which is for camera upgrade. Insert the SD card ( OFF mode ) before beginning to operate the camera. SD card is supported up to maximum 32GB capacity.

    Formatting the SD card:

    Formatting the SD card removes all files on the memory card and prepares for camera. Press the MENU, then RIGHT or LEFT key several more times to move to the “Format” parameter setting menu. Press OK key to enter sub-menu, Press the UP or DOWN key to highlight YES and press OK.


    The KEEPGUARD CAM has three basic operational modes:

    OFF Mode

    The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries, or transporting the device. You will use OFF mode if you connect the camera to a computer′s USB port to download your photos/videos.

    ON Mode

    Once in ON mode no manual controls are needed or possible (the control keys have no effect). The KEEPGUARD CAM will take photos or videos automatically (according to its current parameter settings) when it is triggered by the PIR sensor′s detection of activity in the area it covers.

    SETUP Mode

    In the SETUP mode you can check and change the settings of the KEEPGUARD CAM with the help of built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.


    KG690 Technical Specifications


    Image Sensor 5Megapixel Color CMOS
    Lens F=7.45; FOV=55°Auto IR-Cut-Remove(at night)
    IR-Flash Range 60'-75'(20m-25m)
    Display Screen 2.4 inch Color Display
    Memory Card SD or SDHC Card, Maximum capacity 32GB
    Internal RAM 32M
    Image Size 8M (3264×2448) ; 5M (2592X1944) ; 3M (2048X1536) ;
    Video Size 720×480; 640×480;320×240;
    PIR Sensitivity PIR with 4sensitivity levels :High/ Normal/ Low/Auto
    Operation Day/Night
    Response Time 0.7 s
    Triggering Interval 1sec-60min programmable
    Shutter Speed 1/10-1/2000sec.
    Shooting Numbers 1-3 programmable
    Video Length 5-60sec. programmable
    Power Supply 8×AA recommended;4×AA as emergency power
    Stand-by current <0.28mA
    Power Consumption <200mA(+800mA when IR-LED Lighted)
    Timed Scan programmable
    Temperature Display programmable
    Password programmable
    Moon Display programmable
    Audio Video programmable
    User Interface LCD display
    Interface TV out(NTSC/PAL);USB;SD card holder; 6V DC external
    Security Strap;1/4-20 attachment
    Operating Temperature -20-60℃(Storage temperature:-30-70℃)
    Operating Humidity 5%-90%
    Security Authentication FCC/CE/RoHs/WEEE
