20MP Thermal Surveillance Hunting Camera Waterproof IP65 WEEE
Product Details:
| Place of Origin: | China |
| Brand Name: | KEEPGUARD |
| Certification: | FCC/CE/RoHs/WEEE |
| Model Number: | KG770 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20PCS |
|---|---|
| Price: | USD 69 PCS |
| Packaging Details: | 20 PCS PER CARTON |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, Paypal,Alipay |
| Supply Ability: | 500 PCS PER WEEK |
|
Detail Information |
|||
| IR-Flash Range: | 48*940nm LEDS | Image Size: | 20MP Resolution |
|---|---|---|---|
| Detection Range: | 25m-30m | Response Time: | Picture Trigger: 0.6s，Video Trigger: 1.0s |
| Video Size: | 1280*720P | SD Card: | 16GB;32GB;64GB |
| Display Screen: | 2.4inch HD Color Display | Operating Temperature: | -20-60℃ |
| Language: | English, French, German, Italian, Russian, Spanish, Finnish, Slovak, Turkish, Simplified Chinese, Traditional Chinese | Waterproof: | IP65 |
| Highlight: | 20MP Thermal Surveillance Hunting Camera,Waterproof IP65 Surveillance Hunting Camera,WEEE Outdoor Trail Cameras |
||
Product Description

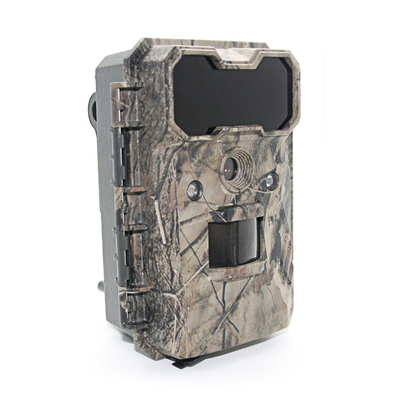

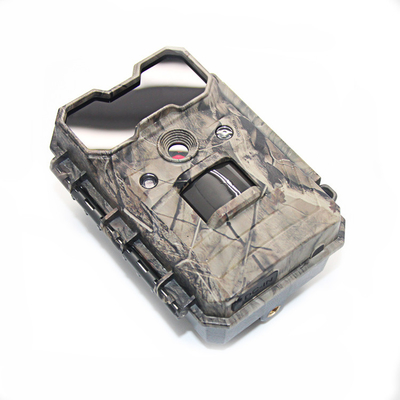

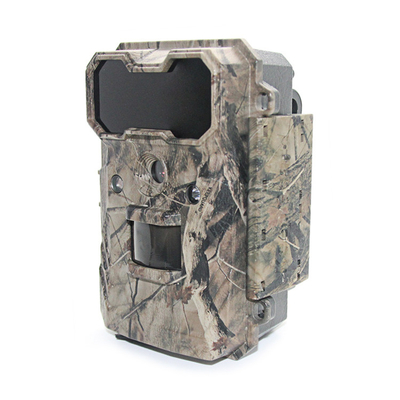

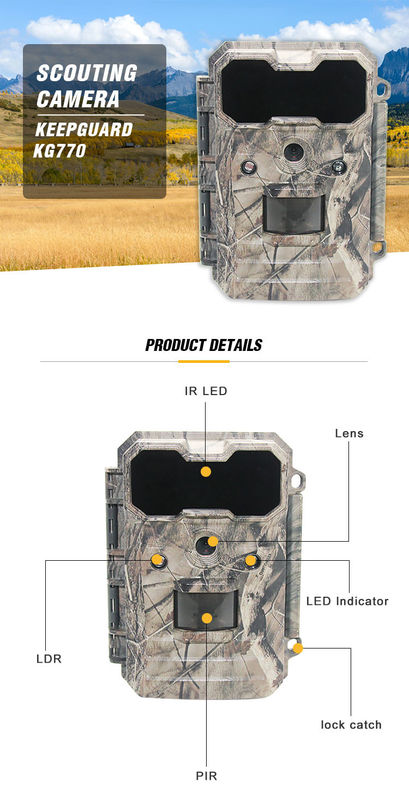

KG770 Trail Camera Security Surveillance Thermal Night Vision Camera For Thermo Vision Hunting
Highly Recommended by Outdoor Explorers - KeepGuard Wildlife Scouting Camera KG770.
This KeepGuard cam is the best-selling scouting camera which is designed for activity and is resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips. Please refer to the notes below and instructions in this manual to ensure that you are completely satisfied with this product.
Quick Start
Move the latches and open the front cover
Load 8 lithium AA or alkaline AA batteries
Insert the SD card
Switch to the SETUP Mode
Press MENU key
Press UP key to select Camera or Video Mode
Press RIGHT key to find Wireless Function and set it“ON”
Put it good position
Switch to the ON Mode and it have started working
More Details
Specification
| Maximum image size | 20MP |
| Lens | f=7.36mm F/NO:2.8 FOV=55°; Auto IR-Cut-Remove (at night) |
| IR-Flash Range | 25m-30m; 48 LEDS |
| Display Screen | 2.4 inch HD Color Display |
| Memory Card | SD or SDHC Card, up to 64GB |
| Image Size | 16MP(4608x3456);8MP(3264×2448);3M (2048X1536); |
| Video Size | 1280*720P |
| PIR Sensitivity | PIR with 4 sensitivity levels:High/ Normal/ Low/Auto |
| Operation | Day/Night |
| Response Time | < 0.25 s |
| Triggering Interval | 1sec-60min programmable |
| Shutter Speed | 1/10-1/2000sec. |
| Shooting Numbers | 1-3 programmable |
| Video Length | 5-60sec. programmable |
| Power Supply | 12V: 8×AA recommended; DC12V |
| Stand-by Current | <0.075mA |
| Power Consumption | <180mA(1A when IR-LED Lighted) |
| Timed Scan | programmable |
| Temperature Display | programmable |
| Camera Name | Input |
| Moon Display | programmable |
| Audio Video | programmable |
| User Interface | LCD display |
| Interface | USB;SD card; |
| Security | Strap;1/4-20 attachment |
| Operating Temperature | -20-60℃(Storage temperature:-30-70℃) |
| Operating Humidity | 5%-90% |
| Security Authentication | FCC/CE/RoHs/WEEE |
| Waterproof | IP67 |
