Night Vision Trail Camera,
Infrared Motion Camera,
IP54 8MP Infrared Hunting Camera
MMS GPRS Infrared Hunting Camera Red Glow Scouting Game DVR Camera
1. 8MP, Camera/Video
2. Trigger time<1.0s
3. Red Glow IR LEDs
4. Super bettery life
5. Waterproof IP54

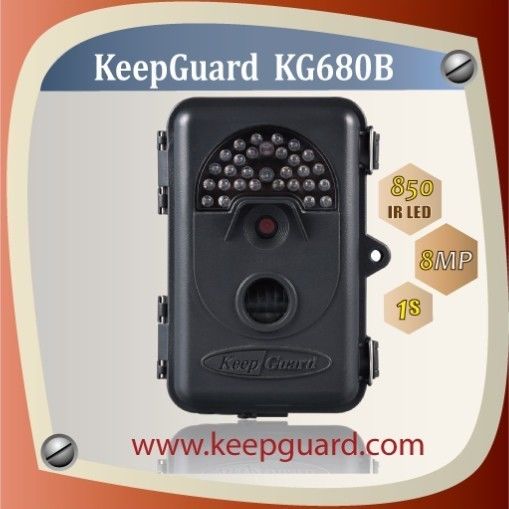

The KeepGuard KG680 is a very classic red glow infrared trail camera in the market . It has been around for several years now and have excelled in wildlife observation, bird watching and security surveillance. KeepGuard KG680 is very popular in market.
The trigger speed and the recovery time on the KG680 are both excellent. The trigger time is 1.0 second. It is more than fast enough to catch the quickest animal or person.
The highlight of the detection circuit is an excellent detection zone. The zone is wide and has a maximum range of 75 ft. The detection range is at least 60 ft in most cases. This is extremely impressive and allows the camera to cover a huge amount of square feet on open fields or food plots.
These numbers indicate that this camera would work in wildlife and security settings.
Picture quality is easily the best part of this camera. The day photos are outstanding in every way. The color produced for day photos is vivid and sharp.
The clarity is excellent even though you will occasionally get a slightly blurred day photo with heavy motion.
Night pictures are extremely sharp and have great color when there is no movement. There is some noticeable blur on objects with movement.
Overall, the night photos are excellent and really put this camera over the top.
|stand-by current||Daytime Current Draw||Nighttime Current Draw|
|<0.30 ma||<200 ma||<600 ma|
s = seconds
ma = milliamps
Operating on 8 AA batteries, this camera will last a long time in the field. With lithium batteries, you can expect anywhere from 8-12 months in the field.
Lithium's, Nimh and alkaline batteries will all work in the KG680. Lithium batteries will give you the longest battery life and also produce slightly brighter night photos than alkaline batteries.
Ease of Use
The case design on the KG680 is high quality all the way around. The case is made of high quality plastic and the buttons have a very positive "click" when you push them. The battery compartment hugs the batteries snugly.
Programming the camera takes seconds and is easy to do off the large 2.4 inch viewing screen. This screen also doubles as a picture viewer. The KG680 can be programmed for many setteings. The shooting information display on the photos,it does imprint the date,time on the pictures.
Durability of the camera, to this point, has not been an issue. Our KeepGuard cameras in general have good durability and minimal problems.
Everything from the camera construction to the camera performance is exactly as you would expect and hope for. Finding flaws with this camera is difficult.
If you want a camera that takes excellent color night photos, the KeepGuard KG680 is your absolute favorite.
|KG680 TECHNICAL SPECIFICATIONS|
|Image Sensor||5 Megapixel Color CMOS|
|Video Camera||720X480/30fps;640X480/30fps; 320X240/30fps;|
|Digital Camera||Single/Burst Shot Color by day, Black& White by night|
|Image Size||8MP(3264X2448); 5MP(2592X1944); 3MP (2048X1536);|
|Lens||f=7.45mm;FOV=55°; Auto IR-Cut-Remove (at night)|
|LCD Display||2.4” Color Display|
|Shutter Speed||1/10~1/2000 Second|
|Self Time Mode||PIR Auto|
|IR-Flash Mode||Automatic Synchronization|
|External Memory||SD/MMC Card (Max.32GB)|
|Connectivity||USB2.0, SD Card Holder；TV Out(NTSC/PAL)；DC External;|
Dual color indicating light,
|Response Time||<1.0 Second|
|IR-Flash Range||20m-25m (28LEDs)|
|IR LEDs/Acrylic||White glass;850nm|
|Trigger Interval||1~59 sec.;1~60min; Programmable|
|Shooting number||1~3; Programmable|
|Video Length||5~60sec.; Programmable|
|Photo stamp||Logo,Time, Day,Moon|
|Power Consumption||< 200mA(+530mA when IR-LED lighted)|
|Operating Temperature||-20℃~60℃(Storage temperature:-30℃~70℃)|
1. A. Trail/Game camera for hunting or scouting
B. Motion-Trigger Camera for Home, Office and Commune
C. All other In/Outdoor Surveillance where Invasion Evidence
Forest, Garden, Office, Home and any other place
