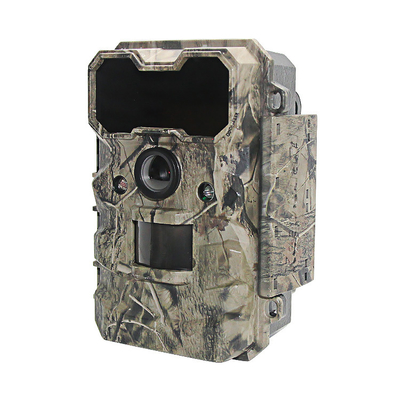

Macro Lens Advanced Sensor & Lens 1080P SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion

Macro Lens Advanced Sensor & Lens 1080P SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion

Macro Lens Advanced Sensor & Lens  1080P  SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion
Macro Lens Advanced Sensor & Lens  1080P  SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion
Macro Lens Advanced Sensor & Lens  1080P  SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion
Product Details:
Place of Origin: China Shenzhen
Brand Name: KeepGuard
Certification: CE FCC RoHS IP65
Model Number: KG790ML
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: 20pcs per carton
Delivery Time: 7-20 days
Payment Terms: T/T, Paypal,Alipay
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Waterproof: IP65 Technology: Infrared
Special Features: Can With Macro Lens Resolution: 1080P
Image Sensor: 5 Mega Pixels CMOS Sensor Image Size: 20MP
LED: 48*940nm Infrared LEDS Trigger Speed: 0.25s
High Light:

police wear camera

,

police wearable camera

Advanced Sensor/Lens 1080P SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion





Parameter KG790
Trigger Time <0.25 s
Mode Camera; Video; Dual
Image Size 3MP;8MP;20MP
Capture Number 1-9
Video Size 640x360; 1280x720; 1920x1080;
Video Length 5s-60s
Camera Name Input
Interval 1s-60m
Coordinate Input ON; OFF
Time Stamp Hidden and on
Time Period ON; OFF
Timed Scan 2X
Video Sound Hidden and On
Format Execute
Default Set Execute
Language

English, Français, Español, Deutsch, Italiano,

Pусский, Subcontinental, 繁體中文, 简体中文



MOUNTING and POSITIONING

Mounting

We recommend mounting cam on a sturdy tree with a diameter of about 6 inch (15cm). To get the optimal picture quality,the tree should be about 16-17 ft(5 meters) away from the place to be monitored, with the camera placed at a height of 5-6.5 ft. (1.5~2 m). Also, keep in mind that you will get the best results at night when the subject is within the ideal flash range, no farther than 60' (19m) and no closer than 10'(3m) from the camera.

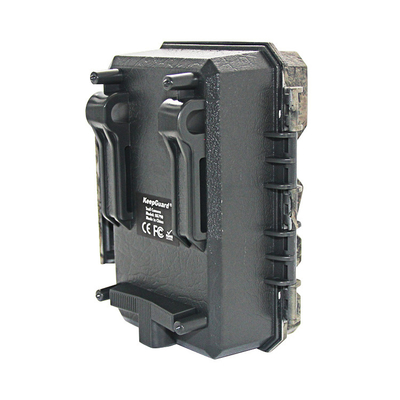

There are two ways to mount cam: using the provided adjustable web belt, or the tripod socket.
•Using the adjustable web belt: Push one end of the belt through the two brackets on the back of cam. Thread the end of the strap through the buckle. Fasten the belt securely around the tree trunk by pulling the end of the strap firmly so there is no slack left.
•Using the tripod socket:The camera is equipped with a socket at the bottom end.

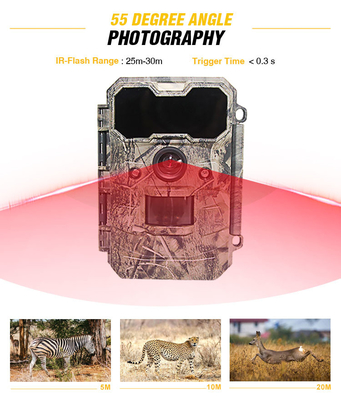

Sensing Angle and Distance

Test To test whether cam can effectively monitor the area you choose, this test is recommended to check the sensing angle and monitoring distance of cam. To perform the test:

•Switch cam to SETUP mode.
• Make movements in front of the camera at several positions within the area where you expect game or subjects to be. Try different distances and angles from camera.
• If emotion indicator LED light blinks, it indicates that position can be sensed.The results of your testing will help you find the best place where mounting and aiming the cam. The height from the ground for placing the device should vary with animal size appropriately. In general,3 to 6 feet is preferred. You can avoid potential false triggers due to temperature and motion disturbances in front of the camera by not aiming it at a heat source or nearby tree branches or brush (especially on windy days).

Macro Lens Advanced Sensor & Lens  1080P  SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion 0

Macro Lens Advanced Sensor & Lens  1080P  SD Card Slot Trail Hunting Deer Waterproof Photo Trap Infrared IR Motion 1
