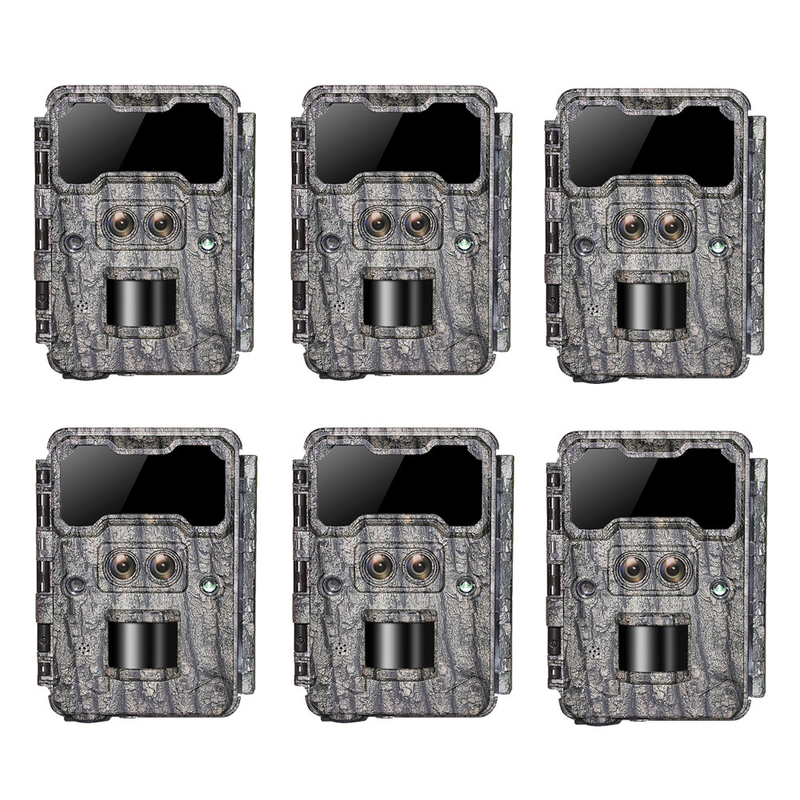

Programmable Infrared Wildlife Camera 32MB Internal Memory Anti Snow

Programmable Infrared Wildlife Camera 32MB Internal Memory Anti Snow

Loading Batteries
After opening the two latches on the right side of the camera, you will see that it has 8 battery slots.
For maximum battery life, we recommend using 8 lithium AA or alkaline AA batteries.

Using an External Power Source
Optionally, you can connect an external 6V DC power source to the "DC In" jack at the bottom of camera.
It is recommended to use a power source with a current output greater than 1000mA. Please make sure
that the polarity is correct.

Inserting SD Card
This camera have 32MB internal memory, which is for camera upgrade. Insert the SD card ( OFF mode )
before beginning to operate the camera. SD card is supported up to maximum 32GB capacity.

Formatting the SD card
Formatting the SD card removes all files on the memory card and prepares for camera. Press the MENU,
then RIGHT or LEFT key several more times to move to the “Format” parameter setting menu. Press OK
key to enter sub-menu, Press the UP or DOWN key to highlight YES and press OK.

THE OFF, ON, and SETUP MODES
The KEEPGUARD CAM has three basic operational modes:
OFF Mode
The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries,
or transporting the device. You will use OFF mode if you connect the camera to a computer's USB port
to download your photos/videos.
ON Mode
Once in ON mode no manual controls are needed or possible (the control keys have no effect). The
KEEPGUARD CAM will take photos or videos automatically (according to its current parameter settings)
when it is triggered by the PIR sensor′s detection of activity in the area it covers.
SETUP Mode
In the SETUP mode you can check and change the settings of the KEEPGUARD CAM with the help of
built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.

Fig. 1: SETUP Information Screen

SETUP Mode Shortcut Keys

1. First switch to the SETUP Mode.
2. Press MENU button.
3. Press RIGHT or LEFT key scrolls to the next or previous parameter.
4. Press UP or DOWN key to select setting for the currently parameter.
5. Press OK to save the new setting.
6. Then switch to ON Mode to take photos or videos.


The SETUP Menu-Parameters and Settings List Descriptions



KG690 Technical Specifications


This is a high-definition digital camera with APP real-time video function and automatic surveillance camera, monitoring and

reconnaissance. The hunting camera automatically captures high-definition (30-megapixel) images and streaming video using thermal animal (human) sensing technology. This hunting camera saves energy without detecting animals (human bodies), and the standby power consumption is 0.1mA. It can be on alert for long periods of time. It can also automatically capture high-quality images (up to 30 megapixels) or record high-definition video clips (4K) that can be sent from mobile devices over 4G networks. Shoots IR (black and white) photos and videos at launch, and features a 2.0-inch color LCD camera and a voice recorder with built-in audio for ease of use. MMS/Email supports 4G network transmission. The camera has an infrared shooting function, which can automatically shoot for a long time without light at night. In addition, this camera can also be used as a compact digital camera, which is a good helper for capturing surprises when you are out and about. 256GB Micro SD card and 30 million pixels, super waterproof, can adapt to various environments, not only suitable for hunting, field animal observation and research, but also suitable for

Supermarkets, companies, communities, homes and other security monitoring work.
