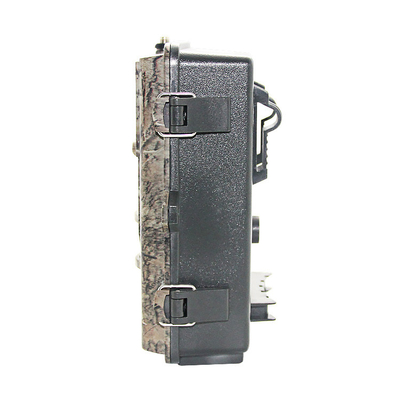

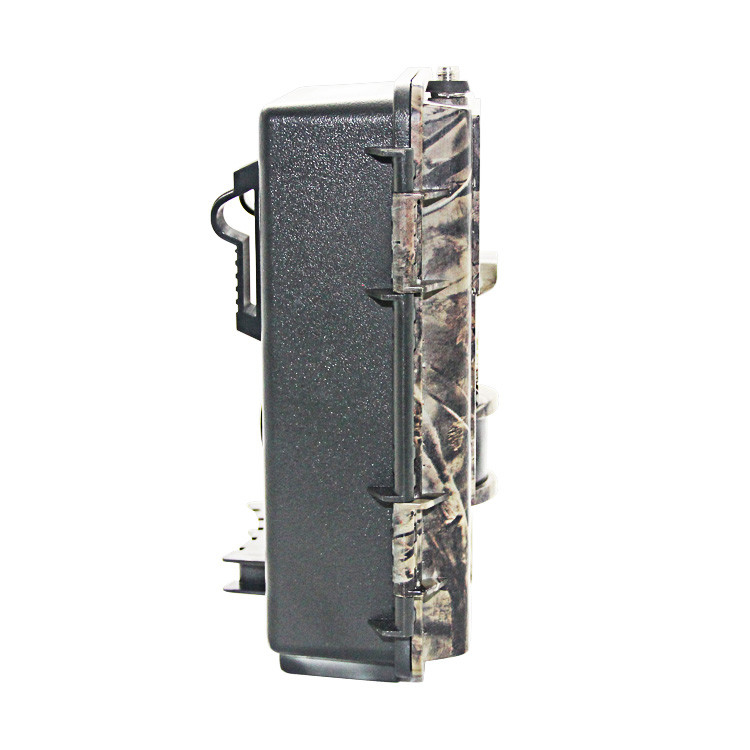

Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras

Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras

  • Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras
  • Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras
Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras
Product Details:
Place of Origin: China Shenzhen
Brand Name: KeepGuard
Certification: CE,ROHS, FCC
Model Number: KG860
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: Gift box, Carton
Delivery Time: 3-7 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Image Sensor: 5MP HD Color CMOS Display Screen: 2.4 Inch Color Display
Image Size: 12MP;8MP;5MP;3MP Response Time: 0.6s
Video Size: 1920*1080p Name: Wireless Trail Camera
High Light:

Waterproof Wireless Trail Camera

,

1920*1080P Wireless Trail Camera

,

1920*1080P HD Hunting Cameras

Waterproof Wireless Trail Camera 1920*1080P HD Hunting Camera





Detection Circuit



     It is tough to improve much over the detection circuit of the 2012 keepGuard KG760NV Cam.  In 2013, it remains a very long detection range(20m-25m).

     The trigger speed is 0.7 seconds,which is one of the fastest trigger on the market. The recovery is 3.0 seconds. This remains one of the finest recovery times on the market.

     The PIR sensor, which controls the detection zone, was improved for 2013.  The detection range is at least 60 ft in most cases.

     Overall, this is an excellent detection circuit without a weakness.  It can provide adequate coverage in any camera trap station you can think up.



Picture Quality



     The day pictures from the KeepGuard are very nice.the maximum pixels can reach 12MP. Color, clarity and focus are exactly what we like to see.

     The night pictures  are surprisingly clear and bright, especially for this no glow trail camera .  You can click on any of the images below to see exactly what we are talking about.



 Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras 0Waterproof Wireless Trail Camera 1920*1080P HD Hunting Cameras 1





Ease of Use



You won't have a problem setting the 2013 KeepGuard KG860NV HD up.  The options are simple and user-friendly. At the same time,It has more programming (timing) options than the competition.

     Durability is still outstanding.  We have experienced minimal returns on this unit and in years past the KeepGuard cameras had very low return rates.  All in all, the durability of the 2013 KeepGuard KG760NV is outstanding.

     With the latest firmware in this camera, we believe the 2013 KeepGuard KG760NV is still a tremendous value.  Quick trigger time, excellent recovery, top-notch battery life and durability to last.

     This camera is a workhorse, throw in a set of batteries and an SD card and let this camera go to work for you.



Battery Life



     Battery life has long been one of the biggest strengths of the KeepGuard Trail Cams.  This camera is no different.  Low stand-by current and low day and night power consumptions.  This camera is a rock star when it comes to battery consumption.




stand-by current Daytime Current Draw Nighttime Current Draw
<0.28 ma <200 ma <800 ma





ma = milliamps

     Operating on 8 AA
 batteries, this camera will last a long time in the field.  With lithium batteries, you can expect anywhere from 8-12 months in the field.  Alkaline batteries do work in this camera, however, from their low tolerance for cold weather we always use nimh rechargeables or lithium batteries.  Depending on your preference, all three battery types will work.



Technical Specification



KeepGuard-KG870NV Technical Specifications

Image Sensor

5 Megapixel Color CMOS

Maximum Pixel Size

12MP

Lens

f=7.45mm;FOV=55°;  F/NO:2.8; Horizonal View Angel =42°;

Auto IR-Cut-Remove (at night)

IR-Flash Range

Up to 25m/82ft (36 LEDs)

   Display Screen

2.4” Color Display

External Memory

SD/SDHC Card (Max.32GB)

Internal Memory

32M

PIR Sensitivity

PIR with 4 Sensitivity Level: High/Normal/Low/Auto

Image Size

12MP(4000X3000);      8MP(3264X2448);

   5MP(2592X1944);     3MP (2048X1536);

Video Size

1920X1080;   1280X720;    848X480;

Response Time

<0.6 Second

Night Vision

Shutter Speed

1/10~1/2000 Second

IR-LED Control

High/Medium/Low

Trigger Interval

1~59 sec.;1~60min; Programmable

Shooting number

1~3  Programmable

Video Length

5~60sec.;Programmable

Connectivity

USB2.0, SD Card Holder;9V DC External;

Power Supply

8xAA recommended; 4xAA as emergency power

Stand-by Current

<0.3mA(<7mAh/day)

Power Consumption

< 200mA

(+600mA when IR-LED lighted)

Security

Strap;1/4-20 attachment

Operating Temperature

-20 ~ +60℃(Storage temperature:-30 ~ +70℃)

Operating Humidity

5% ~ 90%

Security Authentication

FCC/CE/RoHs/WEEE

Dimensions

157*118*77mm/235g
