Home > products > Infrared Hunting Camera > Waterproof IP54 8MP Trial Camera Wildlife Motion Camera KeepGuard 680NV

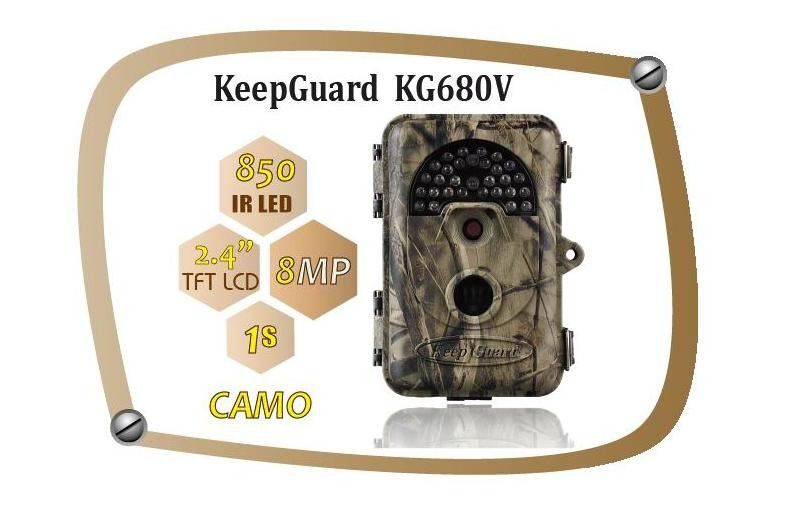

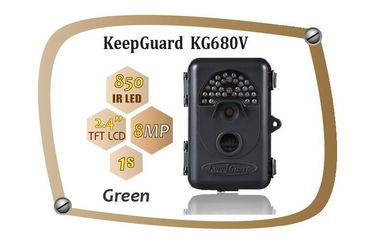

Waterproof IP54 8MP Trial Camera Wildlife Motion Camera KeepGuard 680NV

Infrared Hunting Camera
Payment Method:
Western Union, L/C, T/T
High Light:

Infrared Motion Camera


Hunting Surveillance Cameras


680NV Wildlife Motion Camera



Waterproof IP54 8MP Trial Camera Wildlife Motion Camera KeepGuard 680NV



Quick Facts


1. 8MP, Camera/Video
2. Trigger time<1.0s
3. Red Glow IR LEDs
4. Super bettery life
5. Waterproof IP54




The KeepGuard KG680 is a very classic red glow infrared trail camera in the market . It has been around for several years now and have excelled in wildlife observation, bird watching and security surveillance. KeepGuard KG680 is very popular in market.


Detection Circuit


The trigger speed and the recovery time on the KG680 are both excellent.  The trigger time is 1.0 second. It is more than fast enough to catch the quickest animal or person.

The highlight of the detection circuit is an excellent detection zone.  The zone is wide and has a maximum range of 75 ft. The detection range is at least 60 ft in most cases. This is extremely impressive and allows the camera to cover a huge amount of square feet on open fields or food plots.
These numbers indicate that this camera would work in wildlife and security settings.

Picture Quality


Picture quality is easily the best part of this camera.  The day photos are outstanding in every way.  The color produced for day photos is vivid and sharp.




Waterproof IP54 8MP Trial Camera Wildlife Motion Camera KeepGuard 680NV


The clarity is excellent even though you will occasionally get a slightly blurred day photo with heavy motion.

Night pictures are extremely sharp and have great color when there is no movement.  There is some noticeable blur on objects with movement.



Waterproof IP54 8MP Trial Camera Wildlife Motion Camera KeepGuard 680NVWaterproof IP54 8MP Trial Camera Wildlife Motion Camera KeepGuard 680NV


Overall, the night photos are excellent and really put this camera over the top.


Battery Life


stand-by current

Daytime Current Draw

Nighttime Current Draw

<0.30 ma

<200 ma

<600 ma


s = seconds
ma = milliamps

Operating on 8 AA batteries, this camera will last a long time in the field.  With lithium batteries, you can expect anywhere from 8-12 months in the field.
Lithium's, Nimh and alkaline batteries will all work in the KG680.  Lithium batteries will give you the longest battery life and also produce slightly brighter night photos than alkaline batteries.


Ease of Use

The case design on the KG680 is high quality all the way around.  The case is made of high quality plastic and the buttons have a very positive "click" when you push them.  The battery compartment hugs the batteries snugly.

Programming the camera takes seconds and is easy to do off the large 2.4 inch viewing screen.  This screen also doubles as a picture viewer.  The KG680 can be programmed for many setteings. The shooting information display on the photos,it does imprint the date,time on the pictures.

Durability of the camera, to this point, has not been an issue.  Our KeepGuard cameras in general have good durability and minimal problems.
Everything from the camera construction to the camera performance is exactly as you would expect and hope for. Finding flaws with this camera is difficult.
If you want a camera that takes excellent color night photos, the KeepGuard KG680 is your absolute favorite.




Image Sensor

5 Megapixel Color CMOS

Video Camera

720X480/30fps;640X480/30fps; 320X240/30fps;

Digital Camera

  Single/Burst Shot  Color by day, Black& White by night

Image Size

8MP(3264X2448); 5MP(2592X1944);  3MP (2048X1536);


f=7.45mm;FOV=55°; Auto IR-Cut-Remove (at night)

LCD Display

2.4” Color Display

Shutter Speed

1/10~1/2000 Second

Self Time Mode

PIR Auto

IR-Flash Mode

Automatic Synchronization

External Memory

SD/MMC Card (Max.32GB)

Internal Memory





USB2.0, SD Card Holder;TV Out(NTSC/PAL);DC External;


Dual color indicating light,

Photosensitive Resistance,Updating Light

Power Supply

8xAA recommended;

4xAA as emergency power

Response Time

<1.0 Second

IR-Flash Range

20m-25m (28LEDs)

IR LEDs/Acrylic

White glass;850nm

PIR Sensitivity


Trigger Interval

1~59 sec.;1~60min; Programmable

Shooting number

1~3; Programmable

Video Length

5~60sec.; Programmable

Timed Scan


Photo stamp

Logo,Time, Day,Moon

Time&Day display


Temperature display




Moon Phase


Audio Video


Image Recycle


Stand-by Current


Power Consumption

< 200mA(+530mA when IR-LED lighted)


Strap;1/4-20 attachment

Operating Temperature

-20℃~60℃(Storage temperature:-30℃~70℃)

Operating Humidity


Security Authentication
































































1. A. Trail/Game camera for hunting or scouting
  B. Motion-Trigger Camera for Home, Office and Commune
  C. All other In/Outdoor Surveillance where Invasion Evidence
2. Location
   Forest, Garden, Office, Home and any other place
