THE OFF, ON, and SETUP MODES
The KEEPGUARD WIRELESS CAM has three basic operational modes:
OFF Mode

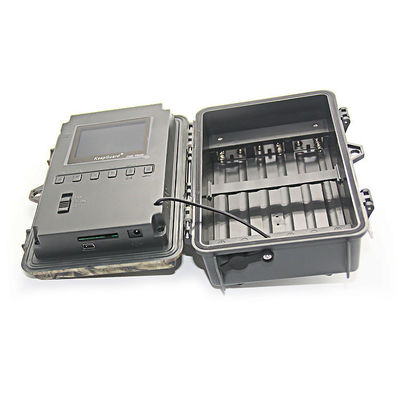

The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries, or transporting the device. You will use OFF mode if you connect the camera to a computer′s USB port to download your photos/videos.
ON Mode
Once in ON mode no manual controls are needed or possible (the control keys have no effect). The KEEPGUARD WIRELESS CAM will take photos or videos automatically (according to its current parameter settings) when it is triggered by the PIR sensor′s detection of activity in the area it covers.
SETUP Mode
In the SETUP mode you can check and change the settings of the KEEPGUARD WIRELESS CAM with the help of built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.

SETUP Mode Shortcut Keys
1.First switch to the SETUP Mode.
2.Press MENU button.
3.Press RIGHT or LEFT key scrolls to the next or previous parameter.
4.Press UP or DOWN key to select setting for the currently parameter.
5.Press OK to save the new setting.
Then switch to ON Mode to take photos or videos.

Wireless Setting Parameters Guide
The camera provides two solutions, i.e. MMS or SMTP, to send the pictures to cell phone and email box.
MMS
If MMS is selected, pictures will be sent to the preset phone (maximum 5 numbers allowed) or email (maximum 5 addresses allowed) or both phone number and email address.
1.Auto setting
a)Country:Choose your Country or Origin in the drop down menu
b)Provider Select:Choose your provider in the drop down menu
2.Manual Setting
If the Country or Provider’s information is not included in the “Auto Setting”, you must select “Manual Setting” and set the parameters for the URL, APN, IP and Port according to the settings the service provider makes available, please contact network service provider if you are not familiar with these settings.
3.Phone No
Enter up to 5 different phone numbers in the Phone NO field. You will need to start every phone number with no spaces or dashes.
4.Email Address
Enter up to 5 different e-mail addresses in the Email field.
SMTP
If SMTP is selected, pictures will be sent from one preset sending email address to one or multiple email addresses via GPRS/HSPA network using the SIM card data plan.
1.Auto setting
a)Country:Choose your Country or Origin in the drop down menu.
b)Provider Select:Choose your provider in the drop down menu.
2.Web Mail: Choose a Web Mail you used as a sending email, it will auto-fill the APN,Server,and Port in the Manual Setting.
3.Manual Setting: If the Country, Provider or/and WebMail’s information are not included in the “Auto Setting”, you must select Manual Setting and set the parameters.
4.Email Address: Choose this option if you only want the photos sent to chosen e-mail addresses.Enter up to 5 different e-mail addresses in the Email field.
WIRELESS TESTING
After you finish the MMS or SMTP Setting, you can make a “Wireless Testing” for KG870NV.
1.Send a test photo
1)Put the power switch in SETUP position to enter the preview screen, set the camera in Camera Mode.
2)Press the LEFT key to take a picture after the camera has searched the mobile signal.
3)The LCD screen will show a step bar. Once it displays “Wireless test over, Send Success”, you have successfully sent your first photo and your camera is ready to take Photos.
2.Send a command code
1)Put the power switch in SETUP/ON position to enter the preview screen.
2)Use the Command Phone send a code #140#, the camera will take a picture after the camera has searched the mobile signal.
3)The LCD screen will show a step bar. Once it displays “Wireless test over, Send Success”, you have successfully sent your first photo and your camera is ready to take Photos.

Timed Scan
Timed Scan is a revolutionary new feature for the KEEPGUARD WIRELESS CAM, which allows you to monitor your food plots or field edges with time lapse images or video. the “time lapse” has been enhanced with the addition of the option for a second block. Time-Lapse Technology automatically captures images at preset intervals of one minute to 60 minutes, within the time frame you select (ex: 6:00 A.M. to 11:00 A.M.). Timed Scan 2x offers the unique ability to select two time frames for field scan (for example: 6:00 A.M. to 11:00 A.M. and 2:00 P.M. to 5:30 P.M.). This allows you to monitor dawn and dusk movement on your favorite food plot.

COORDINATE INPUT
After selecting the Coordinate Input parameter,press UP or DOWN to select the ON setting and press OK.
The Latitude and longitude for any location where you plan to place the camera can be obtained at many websites, for example: http://itouchmap.com/latlong.html.
You can enter a nearby street address, just zip code,or use the various types of maps to locate the opproximate position.The format you will need to use to enter the coordinates in the KG780NV menu screen is shown below:
