|Place of Origin:||China Shenzhen|
|Minimum Order Quantity:||20pcs|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||1000pcs per month|
|Response Time:||0.7s||Image Size:||8MP;5MP;3MP|
|Triggering Interval:||1sec-60min Programmable||Operating Temperature:||-20-60°c(Storage Temperature:-30-70°c)|
|Operating Humidity:||5%-90%||IR-Flash Range:||20m-25m|
|IR LED:||36PCS IR LED||Timed Scan:||2X;Programmable|
Night Vision Trail Camera,
Hunting Surveillance Cameras
5 Megapixel Infrared Motion Camera Wildlife Trail Cameras Motion Detection
Move the latches and open the front cover
Load 8 lithium AA or alkaline AA batteries
Insert the SD card
Switch to the SETUP Mode
Press MENU button
Press UP or DOWN key to select Camera or Video Mode
Put it good position
Switch to the ON Mode and it have started working.
This KEEPGUARD CAM is the best-selling scouting camera which is designed for activity and is
resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips.
After opening the two latches on the right side of the camera, you will see that it has 8 battery slots.
For maximum battery life, we recommend using 8 lithium AA or alkaline AA batteries.
Using an External Power Source
Optionally, you can connect an external 6V DC power source to the "DC In" jack at the bottom of camera.
It is recommended to use a power source with a current output greater than 1000mA. Please make sure
that the polarity is correct.

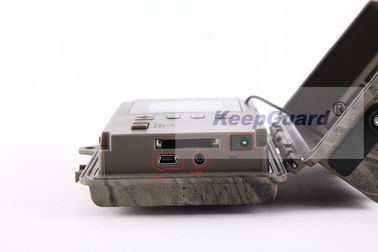

Inserting SD Card
This camera have 32MB internal memory, which is for camera upgrade. Insert the SD card ( OFF mode )
before beginning to operate the camera. SD card is supported up to maximum 32GB capacity.
Formatting the SD card
Formatting the SD card removes all files on the memory card and prepares for camera. Press the MENU,
then RIGHT or LEFT key several more times to move to the “Format” parameter setting menu. Press OK
key to enter sub-menu, Press the UP or DOWN key to highlight YES and press OK.
THE OFF, ON, and SETUP MODES
The KEEPGUARD CAM has three basic operational modes:
The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries,
or transporting the device. You will use OFF mode if you connect the camera to a computer's USB port
to download your photos/videos.
Once in ON mode no manual controls are needed or possible (the control keys have no effect). The
KEEPGUARD CAM will take photos or videos automatically (according to its current parameter settings)
when it is triggered by the PIR sensor′s detection of activity in the area it covers.
In the SETUP mode you can check and change the settings of the KEEPGUARD CAM with the help of
built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.
Fig. 1: SETUP Information Screen
SETUP Mode Shortcut Keys
The SETUP Menu-Parameters and Settings List Descriptions
KG690 Technical Specifications
