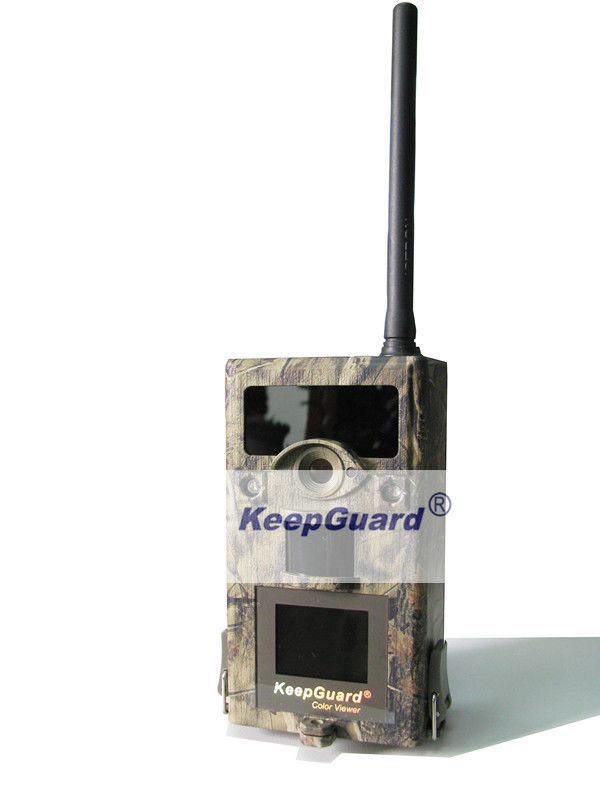

1920*1080P Full HD Infrared Hunting Camera 12MP Wireless Trail Cam
Product Details:
| Place of Origin: | China Shenzhen |
| Brand Name: | KeepGuard |
| Certification: | CE. FCC. RoHS. WEEE |
| Model Number: | KG870 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Response Time: | 0.4s | Image Size: | 8MP;5MP;3MP |
|---|---|---|---|
| Battery Life: | 1 Year | Triggering Interval: | 1sec-60min Programmable |
| IR-Flash Range: | 20m-25m | ||
| High Light: | Night Vision Trail Camera,Infrared Motion Camera |
||
Product Description
1920*1080P Full HD Infrared Hunting Camera 12MP Wireless Trail Cam
Photo Recording
Photo resolution:12MP;8MP;5MP;3MP
Image format:Full Screen,Wide Screen;Programmable
File format: JPEG
Capture number (Muti-Shot):1-3 Programmable
Photo stamp: Time, Day,Moon,Temperature;
Camera name:Input
Capture mode: Color by day, black and white by night
Video Recording
Video resolution: 1920*1080P
File format: AVI
Video length: 5~60sec;Programmable
Audio video: YES
The KEEPGUARD CAM has many advantages as follows:
Battery life has long been one of the biggest strengths of the KEEPGUARD CAM. This camera has low standby current and low day/night power consumptions.It consumes very little power (less than 0.28mA)
in a stand by (surveillance)state.This means it can deliver up to six months stand-by operation time when the device is powered by 12 AA alkaline batteries, and up to twelve months utilizing lithium AA batteries.
The KEEPGUARD CAM is equipped with built-in infrared LEDs that function as a flash, so that it delivers clear photos or videos (in black & white) in the dark, and it can take color photos or videos under sufficient daylight. The KEEPGUARD CAM is designed for outdoor use and is resistant against
water and snow.
The KEEPGUARD CAM is a digital scouting camera. It can be triggered by any movement of game in a location, detected by a highly sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality pictures or video clips.
Video Recording
Video resolution: 1920*1080P
File format: AVI
Video length: 5~60sec;Programmable
Audio video: YES
Lens
f=7.45mm, FOV=55°; F/NO:2.8; Horizonal View Angel =42°
Auto IR-Cut-Remove (at night)
Viewing
LCD display: 2.4"Color Display
computer output:USB2.0,Net cable connect
Time System
Shutter speed: 1/10~1/2000 Second
Self time mode: PIR Auto
Trigger time: <0.8 Second
Trigger interval:1~59 sec.;1~60min; Programmable
Timed scan: 2X
Night time llumination System
IR-Flash mode: Automatic Synchronization
IR-Flash range: 20-25M
IR-LED control: High,Medium,Low;Programmable
LED: Dark glass/ No Glow /940nm LEDs
Detection System
Motion sensor: PIR
PIR sensitivity: High/Normal/Low/Auto
Detection range:20-25M
Field of viewing angle: 55°
Indicating: Dual color indicating light,
Photosensitive Resistance,
Updating Light;
Power Supply
Alkaline or lithium Batteries: Alkaline recommended
Alkaline battery Pack:8xAA recommended;
4xAA as emergency power
External jack: 6V jack
Connectivity: USB2.0, SD Card Holder;
TV Out(NTSC/PAL);DC External
Solar panel: 6V
Power consumption: <200mA (+600mA when IR-LED lighted)
Stand-by current: <0.28mA(<7mAh/day)
Memory storage
External memory: SD/MMC Card (Max.32GB)
Internal memory:32M
DDR:512M
Image recycle: YES
| CARD SIZE | Estimated Card Capacity | |||
| No.of images(jpg) | Length of video(avi) | |||
| 3MP | 5MP | 320X240 | 640X480 | |
| 4GB | 8000 | 3600 | 240min | 120min |
| 8GB | 16000 | 7200 | 480min | 240min |
| 16GB | 32000 | 14400 | 960min | 480min |
| 32GB | 64000 | 28800 | 1920min | 960min |
