|36PCS IR LED
3g Hunting Camera,
3g Game Camera
3MP IR Action Cameras For Hunting , 12MP Wildgame Nation Trail Cameras

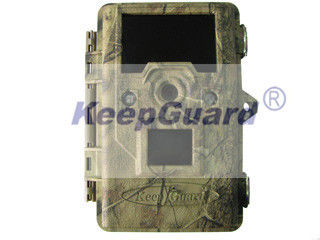

The ACUMAN Cam is a digital scouting camera which is designed for activity and is resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips.

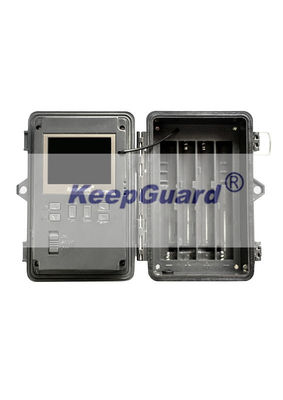

INSTALLING THE BATTERIES and SD CARD
1. Loading Batteries
We recommends using 8 AA batteries or 6V external battery for power supply. Make sure you install
the batteries with right polarity.
Inserting the SD card
The ACUMAN Cam has 32MB internal memory, which can hold about 18 photos. This is handy for testing and
getting familiar with the camera. But you will no doubt want to take more photos, an SD card is recommended.
Three Basic Operational Modes
· OFF Mode: Power OFF mode.
· ON Mode: Active Passive Infrared Mode.
· SETUP Mode: SETUP/TEST Mode,you can set up camera or playback the photos or videos clips.
The SETUP Parameters and Settings List/Descriptions
Selects still photos or video clips,
Or “Dual”=Camera + Video
Higher resolution produces better
quality but larger memory overhead.
4:3(Full Screen) or 16:9(Wide Screen)
Selects how many photos are taken in
sequence per trigger in Camera mode.
IR LED Control
Controls how many LEDs fire when images are taken.
”High” =32 LEDs. Set to medium or Low if photos
overexposed or camera in a close range.
Allows the user to set a custom name for the camera. It is
useful for ID purposes when multiple cameras are setup.
Settings start from 5s to 60s.
It means how long the PIR sensor will be inactive after
each triggering in ON mode.
Select the sensitivity of the PIR sensor. The Higher level will
make the camera more sensitive and be more easily triggered
Time Period Set
A certain time period in a day when the camera can be
triggered, while at the rest of time, the device will be shut off.
Press OK to deletes all files stored on a card to prepare it for
Select ″ON″ to imprint the date & time on photo, select OFF″
for no imprint.
Change the date and time (24-hr format only).
Set Timed Scan
Select "ON" to capture at present internal even no motion gets
Set Video Sound
Press "ON" to record the sound when in video.
Allow the user to input latitude and longitude coordinates for the
camera’s location.This makes it possible to see location on Google
Select “ON” to be replace the oldest photos by new images once
the SD card is full.
Select "ON" to input a new password.
Select ″Execute″ and press OK to restore all parameters to the factory reset.
MOUNTING AND POSITIONING the CAM
There are two ways to mount the Cam.
the Cam. Thread one plastic buckle part onto each end of the belt. Fasten the belt around
the tree trunk by clicking the buckle ends together.
on a tripod or other mounting accessories with a standard 1/4-20 thread.
Sensing angle and distance test
This test is recommended to check the sensing angle and monitoring distance of the Cam. To perform the test:
1.Switch the Cam to the SETUP mode.
2.Make movements in front of the camera at several positions within the area where you expect the
game or subjects to be. Try different distances and angles from the camera.
3.If the motion indicator LED light blinks, it indicates that position can be sensed. If it does not blink, that
position is outside of the sensing area.
The results of your testing will help you find the best placement when mounting and aiming the Cam.The
height away from the ground should vary with the animal size appropriately. In general, 3 to 6 feet is preferred.
Switching on the camera
Once you switch to the ON mode, the motion indicator LED (red) will blink for about 10 seconds. This gives you
time to close and lock the front cover of the Cam and then walk away. After it stops blinking, the PIR is
active, and any motion that is detected by it will trigger the capture of photos or videos as programmed.
VIEW /DELETING IMAGE OR VIDEO ON THE CAMERA LCD SCREEN
There are three ways to review pictures or videos captures
Use the camera LCD screen to View/Delete Image or Video
1.Put the power switch in SETUP mode (switch to OFF first).
2.Push the OK (Replay) key to enter image review mode.
3.Use the UP/DOWN keys to scroll through your photos or videos. Press the
RIGHT (Shot) key to review a video.Press OK to return
4.Push MENU to enter the Delete mode. You will see the first ″Delete″ screen, press the OK. Highlight the “Delete Current” or “Delete All” option, then press OK.
