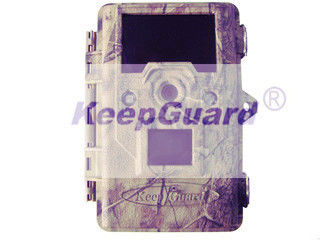

5MP 3MP Wild Game Trail Cam Digital Game Scouting Camera with 0.4s Response Time
Product Details:
| Place of Origin: | China Shenzhen |
| Brand Name: | KeepGuard |
| Certification: | CE. FCC. RoHS. WEEE |
| Model Number: | KG780 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Image Size: | 12MP;8MP;5MP;3MP | Video Size: | 1920*1080P |
|---|---|---|---|
| Battery Life: | 1 Year | Triggering Interval: | 1sec-60min Programmable |
| IR-Flash Range: | 20m-25m | IR LED: | 36PCS IR LED |
| Timed Scan: | 2X;Programmable | Shutter Speed: | 1/10-1/2000s |
| High Light: | 3g Hunting Camera,Outdoor Wildlife Camera |
||
Product Description
5MP 3MP Wild Game Trail Cam Digital Game Scouting Camera with 0.4s Response Time
INTRODUCTION
The ACUMAN Cam is a digital scouting camera which is designed for activity and is resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips.
INSTALLING THE BATTERIES and SD CARD
1. Loading Batteries
We recommends using 8 AA batteries or 6V external battery for power supply. Make sure you install
the batteries with right polarity.
Inserting the SD card
The ACUMAN Cam has 32MB internal memory, which can hold about 18 photos. This is handy for testing and
getting familiar with the camera. But you will no doubt want to take more photos, an SD card is recommended.
Three Basic Operational Modes
· OFF Mode: Power OFF mode.
· ON Mode: Active Passive Infrared Mode.
· SETUP Mode: SETUP/TEST Mode,you can set up camera or playback the photos or videos clips.
- Changing Parameter Settings in SETUP Mode
- First switch to the SETUP Mode.
- Press MENU button.
- Press RIGHT or LEFT key scrolls to the next or previous parameter.
- Press UP or DOWN key to select setting for the currently parameter.
- Press OK to save the new setting.
- Then switch to ON Mode to take photos or videos.
The SETUP Parameters and Settings List/Descriptions
|
Parameter |
Settings (Bold=default) |
Description |
|
Mode |
Camera Video Dual |
Selects still photos or video clips, Or “Dual”=Camera + Video |
|
Image Size |
12MP 8MP 5MP 3MP |
Higher resolution produces better quality but larger memory overhead. |
|
Image Format |
Full screen Wide screen |
4:3(Full Screen) or 16:9(Wide Screen) |
|
Capture Number |
1-3 |
Selects how many photos are taken in sequence per trigger in Camera mode. |
|
IR LED Control |
High Medium Low |
Controls how many LEDs fire when images are taken. ”High” =32 LEDs. Set to medium or Low if photos overexposed or camera in a close range. |
|
Camera Name |
Input |
Allows the user to set a custom name for the camera. It is useful for ID purposes when multiple cameras are setup. |
|
Video Size |
1920x1080 720x400 640x360 |
video resolution |
|
Video Length |
10s |
Settings start from 5s to 60s. |
|
Interval |
10s |
It means how long the PIR sensor will be inactive after each triggering in ON mode. |
|
Sensor Level |
High Normal Low Auto |
Select the sensitivity of the PIR sensor. The Higher level will make the camera more sensitive and be more easily triggered |
|
Time Period Set |
ON OFF N/A |
A certain time period in a day when the camera can be triggered, while at the rest of time, the device will be shut off. |
|
Format |
Execute |
Press OK to deletes all files stored on a card to prepare it for reuse. |
|
Time Stamp |
ON OFF |
Select ″ON″ to imprint the date & time on photo, select OFF″ for no imprint. |
|
Set Clock |
Set |
Change the date and time (24-hr format only). |
|
Set Timed Scan |
ON/ OFF |
Select "ON" to capture at present internal even no motion gets detected. |
|
Set Video Sound |
ON /OFF |
Press "ON" to record the sound when in video. |
|
Coordinate Input |
Input |
Allow the user to input latitude and longitude coordinates for the camera’s location.This makes it possible to see location on Google maps. |
|
Image Recycle |
ON/ OFF |
Select “ON” to be replace the oldest photos by new images once the SD card is full. |
|
Password |
ON/ OFF |
Select "ON" to input a new password. |
|
Default |
Cancel Execute |
Select ″Execute″ and press OK to restore all parameters to the factory reset. |
MOUNTING AND POSITIONING the CAM
Mounting
There are two ways to mount the Cam.
- Using the adjustable web belt:Push one end of the belt through the two brackets on the back of
the Cam. Thread one plastic buckle part onto each end of the belt. Fasten the belt around
the tree trunk by clicking the buckle ends together.
- Using the tripod socket: The camera is equipped with a socket at the bottom end to enable mounting
on a tripod or other mounting accessories with a standard 1/4-20 thread.
Sensing angle and distance test
This test is recommended to check the sensing angle and monitoring distance of the Cam. To perform the test:
1.Switch the Cam to the SETUP mode.
2.Make movements in front of the camera at several positions within the area where you expect the
game or subjects to be. Try different distances and angles from the camera.
3.If the motion indicator LED light blinks, it indicates that position can be sensed. If it does not blink, that
position is outside of the sensing area.
The results of your testing will help you find the best placement when mounting and aiming the Cam.The
height away from the ground should vary with the animal size appropriately. In general, 3 to 6 feet is preferred.
Switching on the camera
Once you switch to the ON mode, the motion indicator LED (red) will blink for about 10 seconds. This gives you
time to close and lock the front cover of the Cam and then walk away. After it stops blinking, the PIR is
active, and any motion that is detected by it will trigger the capture of photos or videos as programmed.
VIEW /DELETING IMAGE OR VIDEO ON THE CAMERA LCD SCREEN
There are three ways to review pictures or videos captures
- to use the camera LCD Screen
- To use a computer(or a SD card viewer with a USB port)
Use the camera LCD screen to View/Delete Image or Video
1.Put the power switch in SETUP mode (switch to OFF first).
2.Push the OK (Replay) key to enter image review mode.
- View Image or Video
3.Use the UP/DOWN keys to scroll through your photos or videos. Press the
RIGHT (Shot) key to review a video.Press OK to return
- Deleting Image or Video
4.Push MENU to enter the Delete mode. You will see the first ″Delete″ screen, press the OK. Highlight the “Delete Current” or “Delete All” option, then press OK.
