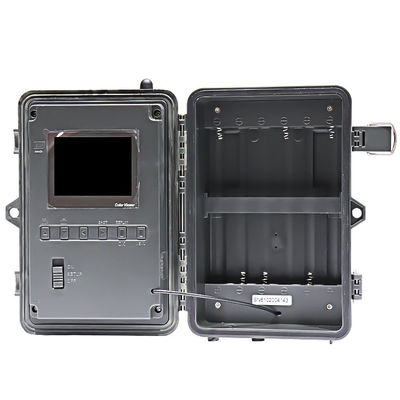

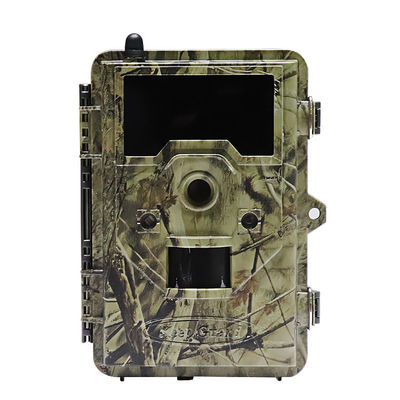

1920*1080P 3G 32 LEDS 6V DC external Trail Camera That Email Pictures / HD Hunting Cameras For Deer

Memory Card	SD or SDHC Card, Maximum capacity 32GB
Image Size	12MP(4000×3000);8MP(3264×2448);5M(2592X1944); 3M (2048X1536);
Video Size	1920*1080
PIR Sensitivity	PIR with 4 sensitivity levels:High/ Normal/ Low/Auto
Operation	Day/Night
Response Time	< 0.6 s
Triggering Interval	1sec-60min programmable
Shutter Speed	1/10-1/2000sec.
Shooting Numbers	1-3 programmable
Video Length	5-60sec. programmable

The settings for each parameter are shown on the display screen of your WIRELESS Trophy Cam HD. All the available settings for the currently displayed parameter are shown on one screen, with a checkmark next to the current setting. To change the setting, first use the UP/DOWN keys to highlight (select) the new setting you want, then press OK to “Execute” the actual change to the selected setting. The checkmark will appear next to your new setting to confirm this.



Field Scan: On

Field Scan A:

[Start]: 6:00

[Stop]: 8:00

Field Scan B:

[Start]: 17:30

[Stop]: 19:00

Interval: 15M



LCD Screen Issues

1. LCD screen powers on but no text is present.

• After moving the switch from “Off” to “Setup” or “On”, make sure that the switch is correctly in position to ensure the proper mode (avoid positions “between” two modes).

• Do not move the switch directly from “On” to “Setup”-always move the switch all the way down to “Off” first, then back up to “Setup”.

2. Screen comes on but then powers off
