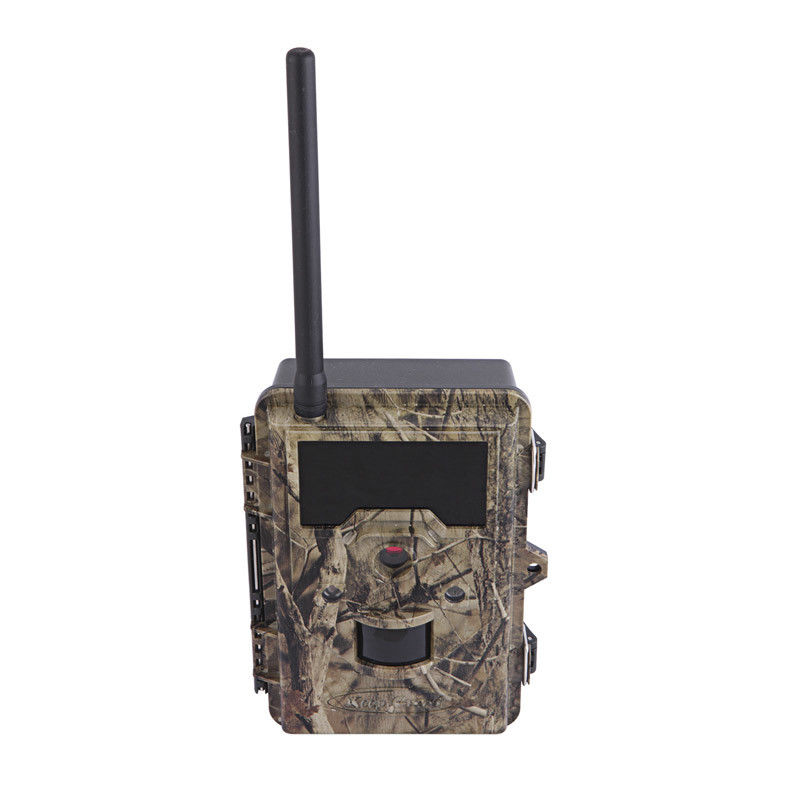

5MP HD color CMOS MMS Trail Camera Wireless Wildlife Camera With IR Led 940nm

Wireless Trail camera
Image Sensor:
Display Screen:
2.4 Inch Color Display
Image Size:
Response Time:
Video Size:
MMS Mode:
Instant/Fixed Time
High Light:

Mms Game Camera


Wild Game Deer Camera



Maximum image size12MP
GSMFor 2G,3G,4G
Lensf=7.36mm F/NO:3.2 FOV=55°; Auto IR-Cut-Remove (at night)
IR-Flash Range20m-25m; 32 LEDS
Display Screen2.4 inch Color Display
Memory CardSD or SDHC Card, Maximum capacity 32GB
Image Size

3M (2048X1536);

Video Size1920*1080
PIR SensitivityPIR with 4 sensitivity levels:High/ Normal/ Low/Auto
Response Time< 0.6 s
Triggering Interval1sec-60min programmable
Shutter Speed1/10-1/2000sec.
Shooting Numbers1-3 programmable
Video Length5-60sec. programmable
Power Supply12×AA recommended;4×AA as emergency power
Stand-by Current<0.28mA
Power Consumption<180mA(+900mA when IR-LED Lighted)
Timed Scanprogrammable
Temperature Displayprogrammable
Camera NameInput
Moon Displayprogrammable
Audio Videoprogrammable
MMS ModeInstant/ Fixed time
MMS FunctionOn/ Off
Send to Mobile Phone1-5 phone number programmable
Send to Email1-5 Email address programmable
User InterfaceLCD display
InterfaceUSB;SD card holder; 6V DC external
SecurityStrap;1/4-20 attachment
Operating Temperature-20-60℃(Storage temperature:-30-70℃)
Operating Humidity5%-90%
Security AuthenticationFCC/CE/RoHs/WEEE

The KeepGuard KG870 is a cellular trail camera that can send pictures, via cellular signal, to your phone, email or both. This is a no glow infrared flash - perfect for any security scenario.
It is important to know that this camera only works with a GSM sim card.It will send photos to any network, the camera just has to be setup with the appropriate sim card. It just requires the GSM sim card in order to do so.
The KG870 has proven to be very consistent in picture delivery, in weaker signal areas, than other cellular cameras. Picture delivery to phone/email is within 60 seconds of the picture being taken.

Security Use
As valuable as this camera is for wildlife surveillance, it is even more valuable as a security camera.
Put the camera up overlooking your business, watching your house while you are on vacation, on a gate entering or exiting your property and countless other options.
With the added benefit of the flash not being visible to the human eye, this is the ultimate security camera.

Within 60 seconds of a person entering the field of view of the camera, you will have a photo of them with both the time and date and other things stamped on the photo. Next step is contacting local authorities and prosecuting!
We have used this camera extensively as security around our office and it works flawlessly.

Detection Circuit
The 0.6 second trigger of our KG870 is the fastest trigger time in all of the cellular trail cameras on the market. And it has a very long detection range(20m-25m). It means so much for you,imagine a trail camera that has a slow trigger speed and a short detection range won't work well on a game trail. By the time a picture is taken, the animal may be completely out of the field of view! Also, if you are using a trail camera for security purposes (i.e. trespassers - thieves), you will need a camera with a fast trigger speed and a long detection range to catch the thieves in action (especially if you are using video mode) or before they leave the picture.However,because of the fastest trigger time and a very long detection range,our KG870 works very perfect in these parts.
Just as impressive as the huge detection range, the camera is snapping the photo just as the animal/person walks into the field of view. The detection zone is wider than the field of view, however, when combined with the trigger time (0.6 seconds) the resulting image is a near-perfectly placed object. Do note: because of the wide detection zone, this will result in blank images if an animal is milling around just outside the field of view. This can result in extra charges if you are on a limited text plan.
This is the best detection circuit from any cellular trail camera. If it weren't for the below-average trigger time, this would be one of the premier circuits of any camera on the market.

5MP HD color CMOS MMS Trail Camera Wireless Wildlife Camera With IR Led 940nm
Battery Life
The KeepGuard Cam consumes very little power (less than 2Motion/Low Battery Indicator0.28mA) in a stand by (surveillance) state.This means it can deliver up to six months stand-by operation time wee device is powered by eight AA alkaline batteries,and up to twelve months utilizing lithium AA batteries.
Unique Feature KeepGuard

Attracted by outdoor adventure, from our hunting camera you can see playing antelopes, and enjoy pleasure of wildlife.
Our hunting camera is one of the fastest cameras, and with high-qualitied frames, you can set camera according to your requirement. All above are to meet your satisfaction for outdoor exploration, also this is unique feature of our camera.
Choose us, you will fall in love with outdoor adventure.

Packaging & Shipping


Packing List
1.Digital Camera
2.USB Cable
3.Belt Strap
4.Warranty Card
5.Instruction Manual
