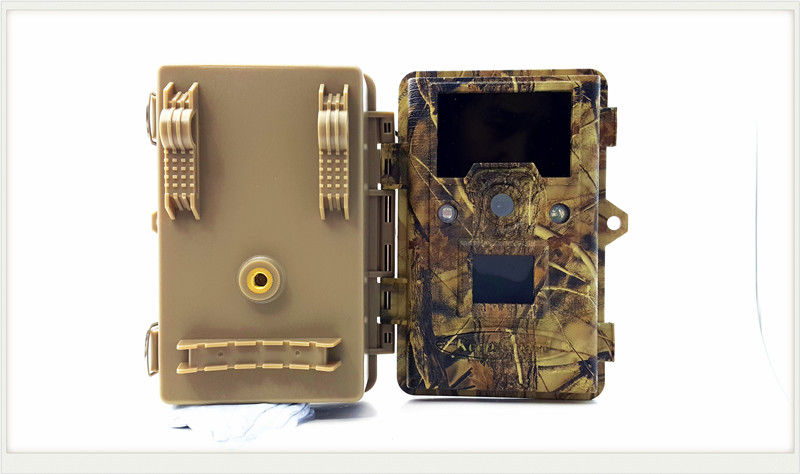

940nm Night Vision Hunting Camera And Motion Sensor CAMO Camera Waterproof IP67
trail cam mounting bracket
,camera wall mount bracket
KG762 SPECIFICATIONS
| Maximum image size | 16MP |
| Lens | F=7.36;F/NO:2.8; FOV=55°Auto IR-Cut-Remove(at night) |
| IR-Flash Range | 20m-30m; 36 LEDS |
| Display Screen | 2.4 inch HD Color Display |
| Memory Card | SD or SDHC Card, Maximum capacity 32GB |
| Internal memory | 128M |
| Image Size | 16MP(4608x3456);8MP(3264×2448)；3M (2048X1536); |
| Video Size | 1280×720; 640×360; |
| PIR Sensitivity | PIR with 3sensitivity levels:High/ Normal/ Low |
| Operation | Day/Night |
| Response Time | <0.3 s |
| Battery life | 12 months |
| Interval | 0.6s.1s-60m programmable |
| Shutter Speed | 1/10-1/2000sec. |
| Capture Numbers | 1-9 programmable |
| Video Length | 5-60sec. programmable |
| Power Supply | 8×AA recommended |
| Stand-by current | <0.09mA |
| Power Consumption | <180mA(+800mA when IR-LED Lighted) |
| Timed Scan | programmable |
| Temperature Display | programmable |
| Password | programmable |
| Moon Display | programmable |
| Audio Video | programmable |
| User Interface | LCD display |
| Interface | USB;SD card holder; |
| Security | Strap;1/4-20 attachment |
| Operating Temperature | -20-60℃(Storage temperature:-30-70℃) |
| Operating Humidity | 5%-90% |
| Security Authentication | FCC/CE/RoHs/WEEE |
INSTALLING THE BATTERIES and SD CARD
1. Loading Batteries
We recommends using 8 AA batteries or 6V external battery for power supply. Make sure you install
the batteries with right polarity.
Inserting the SD card
The ACUMAN Cam has 32MB internal memory, which can hold about 18 photos. This is handy for testing and
getting familiar with the camera. But you will no doubt want to take more photos, an SD card is recommended.
Three Basic Operational Modes
· OFF Mode: Power OFF mode.
· ON Mode: Active Passive Infrared Mode.
· SETUP Mode: SETUP/TEST Mode,you can set up camera or playback the photos or videos clips.
- Changing Parameter Settings in SETUP Mode
- First switch to the SETUP Mode.
- Press MENU button.
- Press RIGHT or LEFT key scrolls to the next or previous parameter.
- Press UP or DOWN key to select setting for the currently parameter.
- Press OK to save the new setting.
- Then switch to ON Mode to take photos or videos.
Packing:
Gift Box:16*16*11CM
Carton Size:50*33*33.5cm
20pcsin one carton
G.W.:12KG
Shipping:
1) All orders are dispatched within 7-15 business days by UPS, or as your request after making payment.
2) A Tracking Number will be sent to you via e-mail after your order has been shipped.
About our factory and certificates:
We are a professional manufacturer for hunting camera with our own hardware and software team, have over 10 years experience in hunting camera and sales. We have many years experience of OEM/ODM expertise and receive OEM/ODM order.
