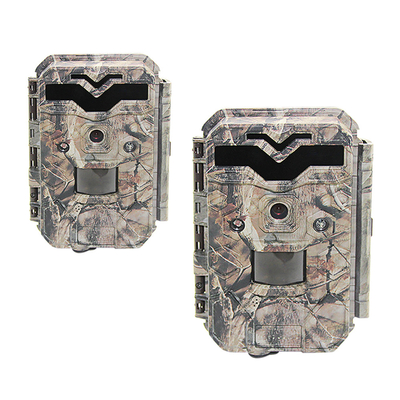

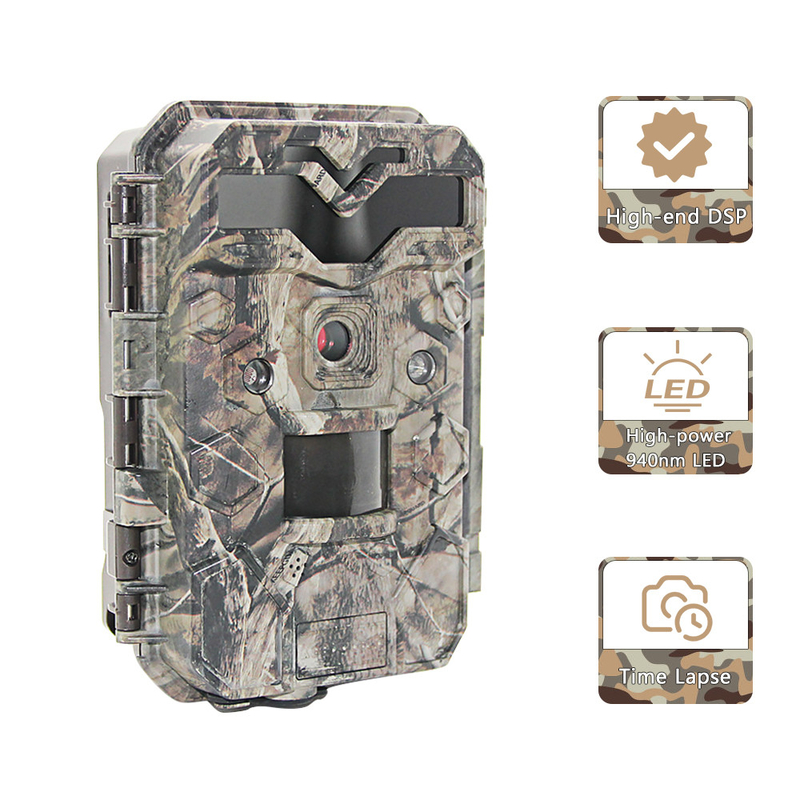

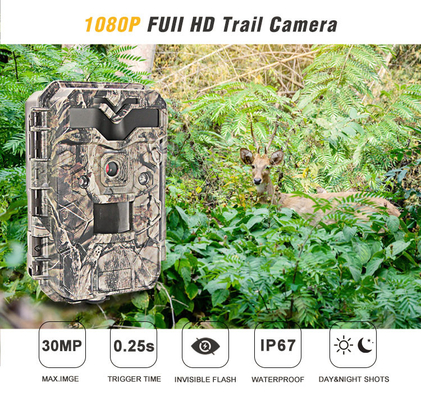

2.4 Inch Screen HD Hunting Cameras IR LED Full HD 1080P Trail Hunting Camera
Product Details:
| Place of Origin: | China Shenzhen |
| Brand Name: | KeepGuard |
| Certification: | CE FCC RoHS |
| Model Number: | KG795 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | color box |
| Delivery Time: | 2-15days |
| Payment Terms: | T/T, Paypal,Alipay |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Standby Time:: | 8-10 Months | Video Size: | 1920*1080;1280*720 ;640*480; |
|---|---|---|---|
| Image Size: | 30MP(6400*4800);16MP(4736*3552);5M (2592*1944); | LED: | High Power IR LED |
| Waterproof: | IP65 | Power: | DC12V;8*AA |
| Highlight: | 140mA HD Hunting Cameras,2.4 Inch Screen HD Hunting Cameras,IR LED Trail Hunting Camera |
||
Product Description
Full HD 1080P 30MP stealth cam hunting games camera night vision trail camera
Product Description
| Maximum image size | 30MP |
| Lens | f=7.36mm F/NO:2.8 FOV=55°; Auto IR-Cut-Remove (at night) |
| IR-Flash Range | 25m-30m; High Power LED : 4LEDS |
| Display Screen | 2.4 inch HD Color Display |
| Memory Card | SD or SDHC Card, up to 64GB |
| Image Size | 30MP(6400x4800);16MP(4736×3552);5M (2592X1944); |
| Video Size | 1920*1080;1280*720 ;640*480; |
| PIR Sensitivity | PIR with 4 sensitivity levels:High/ Normal/ Low/Auto |
| Operation | Day/Night |
| Response Time | Picture trigger:< 0.25 s ;Video trigger: <0.6s; |
| Triggering Interval | 1sec-60min programmable |
| Shutter Speed | 1/10-1/2000sec. |
| Shooting Numbers | 1-9 programmable |
| Video Length | 5-60sec. programmable |
| Power Supply | 8×AA recommended; DC12V |
| Stand-by Current | <75uA |
| Power Consumption | <140mA(500mA when IR-LED Lighted) |
| Timed Scan | programmable |
| Temperature Display | programmable |
| Camera Name | Input |
| Moon Display | programmable |
| Audio Video | programmable |
| User Interface | LCD display |
| Interface | USB;SD card; |
| Security | Strap;1/4-20 attachment |
| Operating Temperature | -20-60℃(Storage temperature:-30-70℃) |
| Operating Humidity | 5%-90% |
| Security Authentication | FCC/CE/RoHs/WEEE |
| Waterproof | IP65 |
Useful Tips
• Setup Mode is the mode for adjusting the camera settings as you wish. You can either power the camera off or on from this switch position.
• We always recommend when returning to your camera that you open the door and power the unit from ON to OFF directly, then select Setup from the OFF position.Moving from ON directly to SETUP is never recommended.
• Always switch the camera OFF to replace the batteries or SD card.
• Front Camera LED Indicator
• The indicator LED flashes red when it is turned to Setup to indicate when motion is detected during setup and flashes for several seconds when the switch is moved to ON when ready for operation.
• In the rare need of updating the software in the camera, the LED light flashes green during the updating process.
• Install 8AA Lithium or 8AA Alkaline batteries for best performance—rechargeable batteries are not recommended.
• When inserting a new SD card, make sure that the SD card lock lever is not in the lock state. Always switch the camera off before removing or inserting an SD card.
• If an external power supply is required, make sure that 12V voltage with max 2A power adapter is used and the polarity of the plug is correct.
• If you plan to store the camera for an extended period of time, please remove the batteries to avoid any possible damage to the camera.
• Camera is water resistant and weather proof, but cannot be directly immersed in water.
• The Fresnel lens the covers the PIR motion sensor is fragile and shouldn’t be under any pressure.
• Keep the lens and battery compartment clean.
