Infrared Animal 1280×720 25m Night Vision Trail Camera
1280×720 digital scouting camera
,25m wildlife trail camera
Infrared Animal 1280×720 25m Night Vision Trail Camera
Night Vision Trail Camera INTRODUCTION
THE OFF, ON, and SETUP MODES
The KEEPGUARD CAM has three basic operational modes:
OFF Mode
The OFF mode is the "safe" mode when any actions must be taken, e.g. replacing the SD card or batteries, or transporting the device. You will use OFF mode if you connect the camera to a computer′s USB port to download your photos/videos.
ON Mode
Once in ON mode no manual controls are needed or possible (the control keys have no effect). The KEEPGUARD CAM will take photos or videos automatically (according to its current parameter settings) when it is triggered by the PIR sensor′s detection of activity in the area it covers.
SETUP Mode
In the SETUP mode you can check and change the settings of the KEEPGUARD CAM with the help of built-in LCD. Moving the power switch to the SETUP position will turn on the LCD display and you will see an information screen.
Night Vision Trail Camera SPECIFICATIONS
| Maximum image size | 12MP |
| ISO | Auto |
| PIR control | Auto |
| Mode | Camera/Video/Dual |
| IR-Flash Range | 60'-75'(20m-25m) |
| Memory Card | SD or SDHC Card, up to 64GB |
| Image Size | 12MP,8M,3M |
| Video Size | 1280×720; 640x360； |
| Video Length | 5-60sec. programmable |
| PIR Sensitivity | PIR with 4sensitivity levels :High/ Normal/ Low/Auto |
| Operation | Day/Night |
| Trigger Time | 0.6 s |
| Interval | 1sec-60min programmable |
| Shutter Speed | 1/10-1/2000sec. |
| Capture Numbers | 1-3 programmable |
| Power life | 12 months |
| Power Supply | 8×AA recommended;12V |
| Stand-by current | <0.09mA |
| Power Consumption | <180mA(+800mA when IR-LED Lighted) |
| Timed Scan | programmable |
| Temperature Display | programmable |
| Moon Display | programmable |
| Audio Video | programmable |
| Lens | F=7.45; FOV=47°, HOV=37,Auto IR-Cut-Remove(at night) |
| User Interface | LCD display |
| Display Screen | 1.5inch B-W Display;36LEDs |
| Interface | USB;SD card |
| Security | Strap;1/4-20 attachment |
| Waterproof | IP67 |
| Operating Temperature | -30-70℃ |
| Operating Humidity | 5%-90% |
| Security Authentication | FCC/CE/RoHs/WEEE |
| Waterproof | IP67 |
| Language | English |

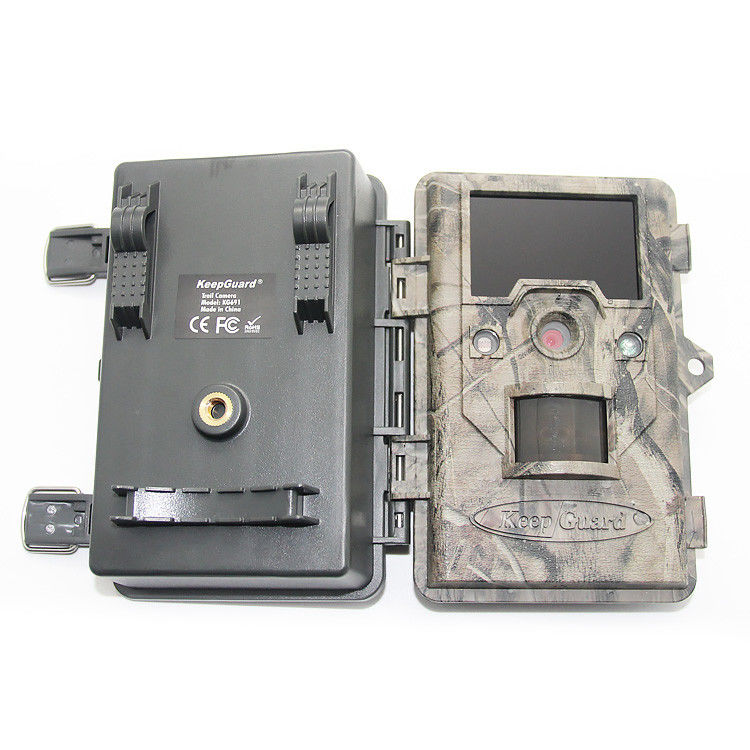

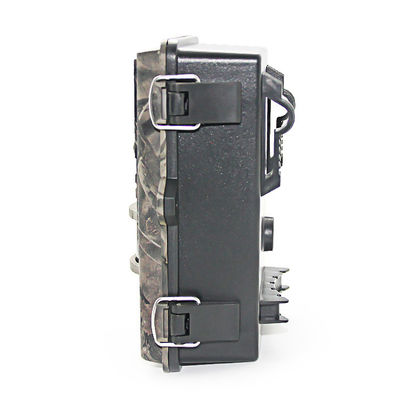

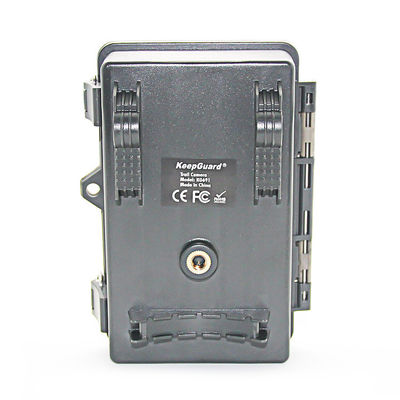

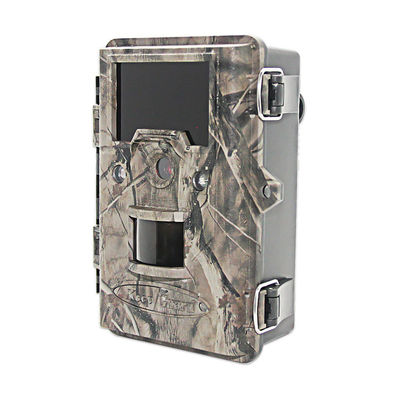

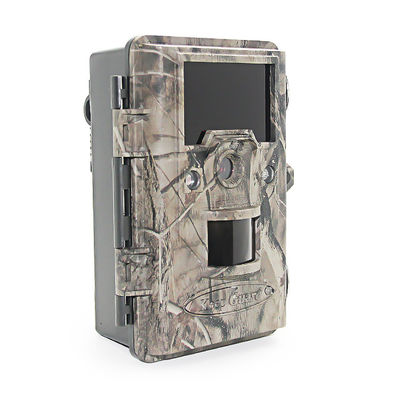

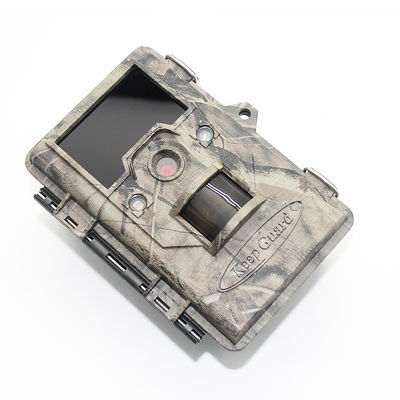

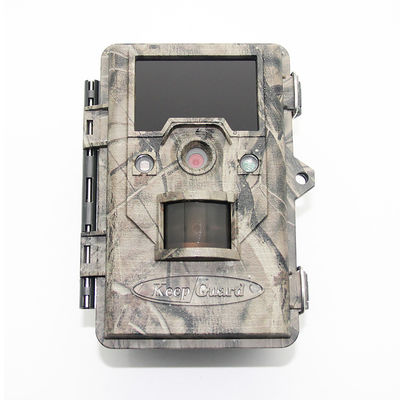

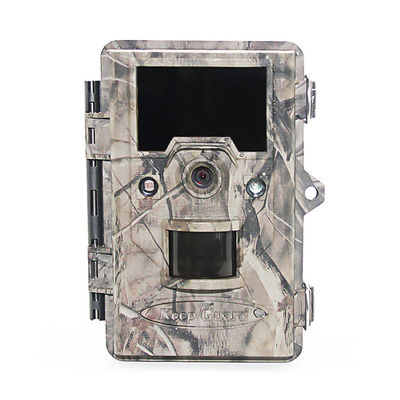

Night Vision Trail Camera Pictures
