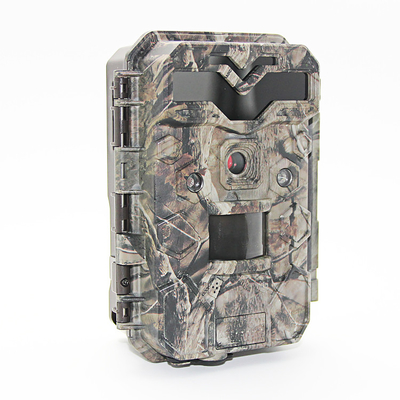

1920*1080P 16MP Deer Hunting Video Cameras For Animal Observation

Category:
HD Hunting Cameras
Price:
Negotiable
Specifications
Image Size:
16mp
Video Size:
1920*1080P
IR-Flash Range:
25--30M
Timed Scan:
2X;Programmable
Name:
16MP HD Hunting Cameras
Stand-by Current:
<0.09mA
High Light:

1920*1080P Deer Hunting Video Cameras

,

16MP Deer Hunting Video Cameras

,

Animal Observation video trail camera

Introduction

1920*1080P 16MP Deer Hunting Video Cameras For Animal Observation




  1. Changing Parameter Settings in SETUP Mode
  2. First switch to the SETUP Mode.
  3. Press MENU button.
  4. Press RIGHT or LEFT key scrolls to the next or previous parameter.
  5. Press UP or DOWN key to select setting for the currently parameter.
  6. Press OK to save the new setting.
  7. Then switch to ON Mode to take photos or videos.

MOUNTING AND POSITIONING the CAM
Mounting
There are two ways to mount the Cam.

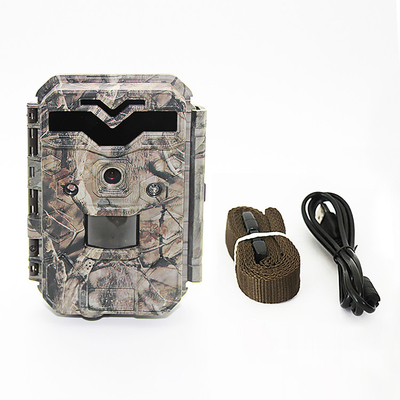

  1. Using the adjustable web belt:Push one end of the belt through the two brackets on the back of

the Cam. Thread one plastic buckle part onto each end of the belt. Fasten the belt around
the tree trunk by clicking the buckle ends together.

  1. Using the tripod socket: The camera is equipped with a socket at the bottom end to enable mounting

on a tripod or other mounting accessories with a standard 1/4-20 thread.
Sensing angle and distance test
This test is recommended to check the sensing angle and monitoring distance of the Cam. To perform the test:
1.Switch the Cam to the SETUP mode.
2.Make movements in front of the camera at several positions within the area where you expect the
game or subjects to be. Try different distances and angles from the camera.
3.If the motion indicator LED light blinks, it indicates that position can be sensed. If it does not blink, that
position is outside of the sensing area.
The results of your testing will help you find the best placement when mounting and aiming the Cam.The
height away from the ground should vary with the animal size appropriately. In general, 3 to 6 feet is preferred.
Switching on the camera
Once you switch to the ON mode, the motion indicator LED (red) will blink for about 10 seconds. This gives you
time to close and lock the front cover of the Cam and then walk away. After it stops blinking, the PIR is
active, and any motion that is detected by it will trigger the capture of photos or videos as programmed.
VIEW /DELETING IMAGE OR VIDEO ON THE CAMERA LCD SCREEN
There are three ways to review pictures or videos captures

  1. to use the camera LCD Screen
  2. To use a computer(or a SD card viewer with a USB port)

Use the camera LCD screen to View/Delete Image or Video
1.Put the power switch in SETUP mode (switch to OFF first).
2.Push the OK (Replay) key to enter image review mode.

  • View Image or Video

3.Use the UP/DOWN keys to scroll through your photos or videos. Press the
RIGHT (Shot) key to review a video.Press OK to return

  • Deleting Image or Video

4.Push MENU to enter the Delete mode. You will see the first ″Delete″ screen, press the OK. Highlight the “Delete Current” or “Delete All” option, then press OK.

KG785 SPECIFICATIONS

Maximum image size 16MP
Lens f=7.45mm;F/NO:3.2;FOV=55°; Auto IR-Cut-Remove (at night)
IR-Flash Range 9m-21m;36 LEDs
Display Screen 2.4 inch HD Color Display;
Memory Card SD or SDHC Card, Maximum capacity 64GB
Internal Memory 0
Image Size 16MP(4608x3456); 8MP(3264×2448); 3M(2048X1536);
Image Recycle ON/OFF
Image Format Full Screen/Wide Screen
Video Size 1920X1080;1280x720;640x360
PIR Sensitivity PIR with 4 sensitivity levels: High/ Normal/ Low/Auto
IR LED Control High/Medium/Low
Operation Day/Night
Response Time <0.3s
Triggering Interval 1s-60m programmable
Shutter Speed 1/10-1/2000sec.
Capture Numbers 1-9 programmable
Video Length 5-60sec. programmable
Power Supply 8×AA recommended;
Stand-by current <0.09mA
Power Consumption <180mA(+800mA when IR-LED Lighted)
Timed Scan 2X;programmable
Temperature Display programmable
Password programmable
Camera Name Input
Moon Display programmable
Audio Video programmable
User Interface LCD display
Interface USB;SD card holder;
Security Strap
Operating Temperature -20-60℃(Storage temperature:-30-70℃)
Operating Humidity 5%-90%
Security Authentication FCC/CE/RoHs/WEEE
