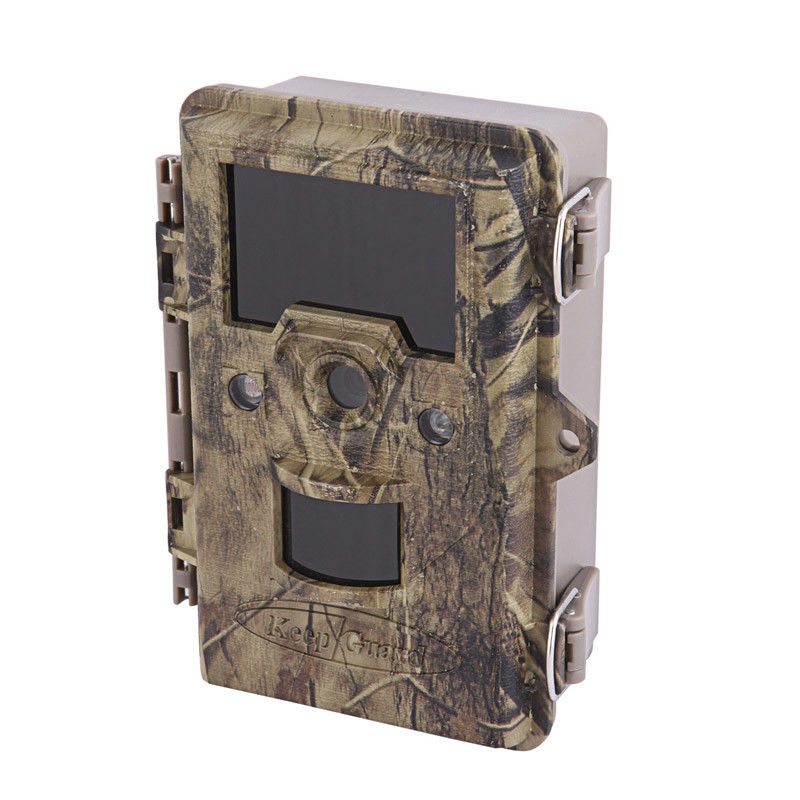

1920*1080P Full Infrared Hunting Camera 12MP Trail Cam with HD Color Display
Product Details:
| Place of Origin: | CHINA SHENZHEN |
| Brand Name: | Keepguard |
| Certification: | FCC/CE/RoHs/WEEE |
| Model Number: | KG785 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | $US1---100PC |
| Packaging Details: | Gift Box |
| Supply Ability: | 50000PCS per month |
|
Detail Information |
|||
| Material: | PVC | Color: | CAMO |
|---|---|---|---|
| RANGE: | 9-21M | WEIGHT: | 250g |
| Response Time: | <0.3s | ||
| High Light: | Digital Trail Camera,Game Trail Cameras |
||
Product Description
General Description
KG785 SPECIFICATIONS
| Maximum image size | 16MP |
| Lens | f=7.45mm;F/NO:3.2;FOV=55°; Auto IR-Cut-Remove (at night) |
| IR-Flash Range | 9m-21m;36 LEDs |
| Display Screen | 2.4 inch HD Color Display; |
| Memory Card | SD or SDHC Card, Maximum capacity 64GB |
| Internal Memory | 0 |
| Image Size | 16MP(4608x3456); 8MP(3264×2448); 3M(2048X1536); |
| Image Recycle | ON/OFF |
| Image Format | Full Screen/Wide Screen |
| Video Size | 1920X1080;1280x720;640x360 |
| PIR Sensitivity | PIR with 4 sensitivity levels: High/ Normal/ Low/Auto |
| IR LED Control | High/Medium/Low |
| Operation | Day/Night |
| Response Time | <0.3s |
| Triggering Interval | 1s-60m programmable |
| Shutter Speed | 1/10-1/2000sec. |
| Capture Numbers | 1-9 programmable |
| Video Length | 5-60sec. programmable |
| Power Supply | 8×AA recommended; |
| Stand-by current | <0.09mA |
| Power Consumption | <180mA(+800mA when IR-LED Lighted) |
| Timed Scan | 2X;programmable |
| Temperature Display | programmable |
| Password | programmable |
| Camera Name | Input |
| Moon Display | programmable |
| Audio Video | programmable |
| User Interface | LCD display |
| Interface | USB;SD card holder; |
| Security | Strap |
| Operating Temperature | -20-60℃(Storage temperature:-30-70℃) |
| Operating Humidity | 5%-90% |
| Security Authentication | FCC/CE/RoHs/WEEE |
Applications
The KeepGuard Cam can be used as a trail camera for hunting or scouting game. It is also suitable for surveillance usage.PARTS AND CONTRALS The KeepGuard Cam provides the following connections for external devices: USB port, SD card slot, TV Out and external DC power in(Fig. 1).
A three way power switch is used to select the main operating modes: OFF, SETUP, and ON (Fig. 2).
A control key interface with six keys is primarily used in SETUP mode to select operational functions and parameters. As shown in Fig. 2, these keys are: UP, DOWN, LEFT, RIGHT, OK and MENU. Four of the keys can also perform a second function (shortcut operations in SETUP mode) in addition to their main function: The DOWN key can be used to set theVideo mode (movie camera icon), and the UP key can set the camera to Photo mode (still camera icon). The RIGHT key also serves as the manual shutter ("SHOT") button of the camera and the OK key switches the camera to the payback ("REPLAY") mode.
These secondary functions are indicated by icons or text above the key as shown
