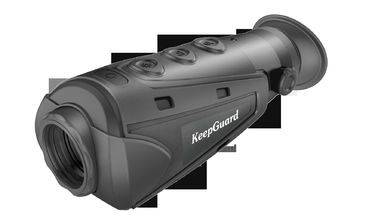

Customized Night Vision And Thermal Scope / Thermal Imaging Hunting Scope
Category:
Thermal Imaging Monocular
Price:
Negotiation
Payment Method:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Specifications
Name:
Night Vision And Thermal Scope
Detector Type:
400 ×300@17 μm
Spectral Range:
8μm~14 μm
Focus:
19mm
Size:
Customized
FOV:
19.0°×14.5°
Screen:
Colorful 0.2″LCOS
Other Name:
Thermal Imaging Hunting Scope
High Light:
infrared thermal scope
,thermal vision monocular
Introduction
Customized Night Vision And Thermal Scope / Thermal Imaging Hunting Scope
Night Vision And Thermal Scope Main Features
- Wifi for remote control, display synchronously, take photos and videos
- Imaging better, detect further, highlight the target easier
- IP66 protection, one meter drop resistance
- Easy operation with only three buttons silent and lightproof design to prevent exposure
- Built-in battery life up to 5h, external power supply available
- Illuminator or laser pointer or neither
Night Vision And Thermal Scope Application
Hunting /Law enforcement/Outdoor /Patrol/
Search & Rescue/Personal Security
Night Vision And Thermal Scope Parameters
| Item | KG510IR N1 | KG510IR N1 WIFI | KG510IR N2 | KG510IR N2 WIFI |
| Detector | ||||
| Detector Type | 400 ×300@17 μm | |||
| Spectral Range | 8μm~14 μm | |||
| Lens | ||||
| Focus | 19mm | 25mm | ||
| Focusing | free | Manual | ||
| FOV | 19.0°×14.5° | 14.6°×11.1° | ||
| Screen | Colorful 0.2″LCOS | |||
| Viewfinder | Monocular, diopter adjustable±4 | |||
| Image | ||||
| Frame | 50Hz | |||
| Digital Zoom | ×2, ×4 | |||
| Color Palette | Black hot, white hot, red hot 1, red hot 2, red hot 3 | |||
| Fuctions | ||||
| Photograph | × | × | × | × |
| Additional functions | Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
| Cross cursor | √ | √ | √ | √ |
| Image enhancement | × | √ | × | √ |
| Wi -Fi | × | √ | × | √ |
| Zoom | √ | √ | √ | √ |
| Freeze | √ | × | √ | × |
| Charging indicator | √ | √ | √ | √ |
| Active indicator | √ | √ | × | √ |
| Power | ||||
| Battery | Internal Li -ion battery,3.7V,3200mAh | |||
| Working Time | ≥5h | |||
| Adapter | Standard USB power adapter, max 10W | |||
| Interface | ||||
| USB | Charging | |||
| Video Output | MCX Connector,PAL /NTSC | |||
| Environment Characteristics | ||||
| Working Temperature | -10℃~50℃ | |||
| Storage Temperature | -30℃~60℃ | |||
| Humidity | 10%~95% | |||
| Shock | 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6 | |||
| Encapsulation | IP66 | |||
| Drop | 1m drop | N/A | ||
| Physical Parameter | ||||
| Weight | 350g | 375g | ||
| Size | 160mm ×67mm ×62mm | 168mm ×67mm ×62mm | ||
| Package | ||||
| Standard accessories | thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual | |||
| Optional accessories | N/A | 40mm extender lens (FOV:9.3°×7.0°) | ||
| Detection Range | ||||
| Human :1.8m ×0.5m | 500m | 700m | ||
| Vehicle:2.3m ×2.3m | 1300m | 1700m | ||
| Recognition Range | ||||
| Human :1.8m ×0.5m | 300m | 350m | ||
| Vehicle:2.3m ×2.3m | 500m | 700m | ||
Night Vision And Thermal Scope Details
