OEM Military Thermal Monocular Detect Further Thermal Spotting Scope
Category:
Thermal Imaging Monocular
Price:
Negotiation
Payment Method:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Specifications
Name:
Thermal Spotting Scope
Feature:
Detect Further
Spectral Range:
8μm~14 μm
Focus:
19mm
FOV:
19.0°×14.5°
Viewfinder:
Monocular, Diopter Adjustable±4
High Light:
OEM Military Thermal Monocular
,Detect Further Military Thermal Monocular
,Detect Further Thermal Spotting Scope
Introduction
Detect Further Thermal Spotting Scope , OEM Military Thermal Monocular
Thermal Spotting Scope Features and Benefits
· Wi-Fi for remote control,to display synchronously,take photos and videos
· Easy operation with only three buttons Silent and lightproof design to prevent exposure Built-in batery life up to 5h,external power supply available
· lluminator or laser pointer or neither
· IP66 protection and 1m drop test passed to suit the wild
Thermal Spotting Scope Parameters
| Item | KG510IR N1 | KG510IR N2 | KG510IR N2 WIFI |
| Detector | |||
| Detector Type | 400 ×300@17 μm | ||
| Spectral Range | 8μm~14 μm | ||
| Lens | |||
| Focus | 19mm | 25mm | |
| Focusing | free | Manual | |
| FOV | 19.0°×14.5° | 14.6°×11.1° | |
| Screen | Colorful 0.2″LCOS | ||
| Viewfinder | Monocular, diopter adjustable±4 | ||
| Image | |||
| Frame | 50Hz | ||
| Digital Zoom | ×2, ×4 | ||
| Color Palette | Black hot, white hot, red hot 1, red hot 2, red hot 3 | ||
| Fuctions | |||
| Photograph | × | × | × |
| Additional functions | Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
| Cross cursor | √ | √ | √ |
| Image enhancement | × | × | √ |
| Wi -Fi | × | × | √ |
| Zoom | √ | √ | √ |
| Freeze | √ | √ | × |
| Charging indicator | √ | √ | √ |
| Active indicator | √ | × | √ |
| Power | |||
| Battery | Internal Li -ion battery,3.7V,3200mAh | ||
| Working Time | ≥5h | ||
| Adapter | Standard USB power adapter, max 10W | ||
| Interface | |||
| USB | Charging | ||
| Video Output | MCX Connector,PAL /NTSC | ||
| Environment Characteristics | |||
| Working Temperature | -10℃~50℃ | ||
| Storage Temperature | -30℃~60℃ | ||
| Humidity | 10%~95% | ||
| Shock | 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6 | ||
| Encapsulation | IP66 | ||
| Drop | 1m drop | N/A | |
| Physical Parameter | |||
| Weight | 350g | 375g | |
| Size | 160mm ×67mm ×62mm | 168mm ×67mm ×62mm | |
| Package | |||
| Standard accessories | thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual | ||
| Optional accessories | N/A | 40mm extender lens (FOV:9.3°×7.0°) | |

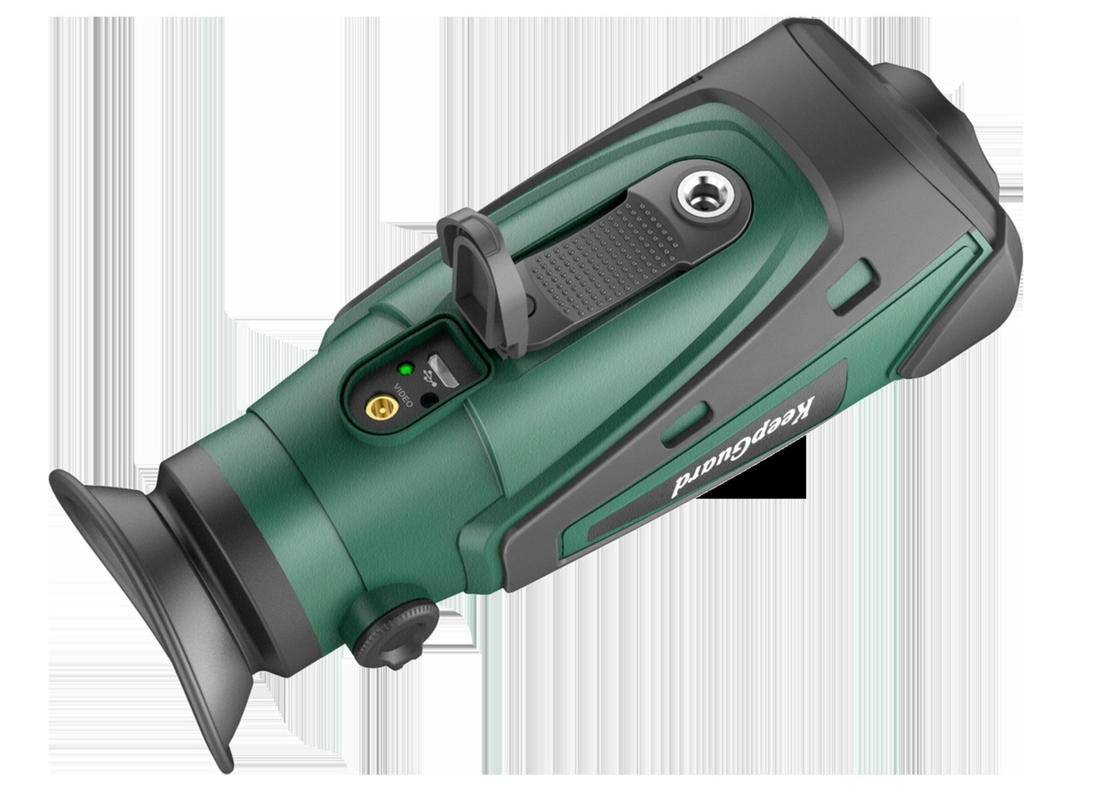

Thermal Spotting Scope Details
