Multi Functional Thermal Imaging Monocular For Fire Fighting / Outdoor

Multi Functional Thermal Imaging Monocular For Fire Fighting / Outdoor

  • Multi Functional Thermal Imaging Monocular For Fire Fighting / Outdoor
Multi Functional Thermal Imaging Monocular For Fire Fighting / Outdoor
Product Details:
Place of Origin: GUANGDONG
Certification: FCC CE ROHS
Model Number: KG510IR
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 20 PCS PER CARTON
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS PER WEEK
Contact Now
Detailed Product Description
Name: Thermal Imaging Monocular Feature: Multi Functional
Spectral Range: 8μm~14 μm Application: Fire Fighting / Outdoor
Focusing: Free FOV: 19.0°×14.5°
Screen: Colorful 0.2″LCOS Viewfinder: Monocular, Diopter Adjustable±4
High Light:

thermal infrared monocular


infrared thermal scope

Multi Functional Thermal Imaging Monocular For Fire Fighting / Outdoor


Thermal Imaging Monocular Application


Fire fighting


Thermal Imaging Monocular has a transparent smoke performance. Not only it can quickly find the target in the smoke environment, but it can find the escape exits. Widely used in a variety of devices in the dectection of the production site and distinguished the possible hazards during operation.


Law Enforcement


With the help of Thermal Imaging Monocular, officers can more effectively manage surveillance activities, locate and apprehend suspects, investigate crime scenes and conduct search and rescue operations. Proper use of the technology has been shown to help officers detect potential dangers and stay safer on the job.


Hunting & Outdoor


Thermal Imaging Monocular are useful when hunting is permissible only during the day. They let hunters see the heat generated by game in densely wooded areas, even in broad daylight. Thermal vision systems can also help prevent hunting accidents.
Thermal vision systems can also be useful in a number of ways, from making sure a campfire is truly out to observing wildlife that only comes out after sunset.


Thermal Imaging Monocular Features and Benefits

·Wi-Fi for remote control,to display synchronously,take photos and videos
·Imaging better,detect further,highlight the target easier
·Easy operation with only three buttons Silent and lightproof design to prevent exposure Built-in batery life up to 5h,external power supply available
·lluminator or laser pointer or neither
·IP66 protection and 1m drop test passed to suit the wild


Thermal Imaging Monocular Parameters


Item KG510IR N2 KG510IR N2 WIFI
Detector Type 400 ×300@17 μm
Spectral Range 8μm~14 μm
Focus 25mm
Focusing Manual
FOV 14.6°×11.1°
Screen Colorful 0.2″LCOS
Viewfinder Monocular, diopter adjustable±4
Frame 50Hz
Digital Zoom ×2, ×4
Color Palette Black hot, white hot, red hot 1, red hot 2, red hot 3
Photograph × ×
Additional functions Illuminator or laser
pointer or neither
Illuminator or laser
pointer or neither
Cross cursor
Image enhancement ×
Wi -Fi ×
Freeze ×
Charging indicator
Active indicator ×
Battery Internal Li -ion battery,3.7V,3200mAh
Working Time ≥5h
Adapter Standard USB power adapter, max 10W
USB Charging
Video Output MCX Connector,PAL /NTSC
Environment Characteristics
Working Temperature -10℃~50℃
Storage Temperature -30℃~60℃
Humidity 10%~95%
Shock 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6
Encapsulation IP66
Drop N/A
Physical Parameter
Weight 375g
Size 168mm ×67mm ×62mm
Standard accessories thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual
Optional accessories 40mm extender lens (FOV:9.3°×7.0°)
Detection Range
Human :1.8m ×0.5m 700m
Vehicle:2.3m ×2.3m 1700m
Recognition Range
Human :1.8m ×0.5m 350m
Vehicle:2.3m ×2.3m 700m

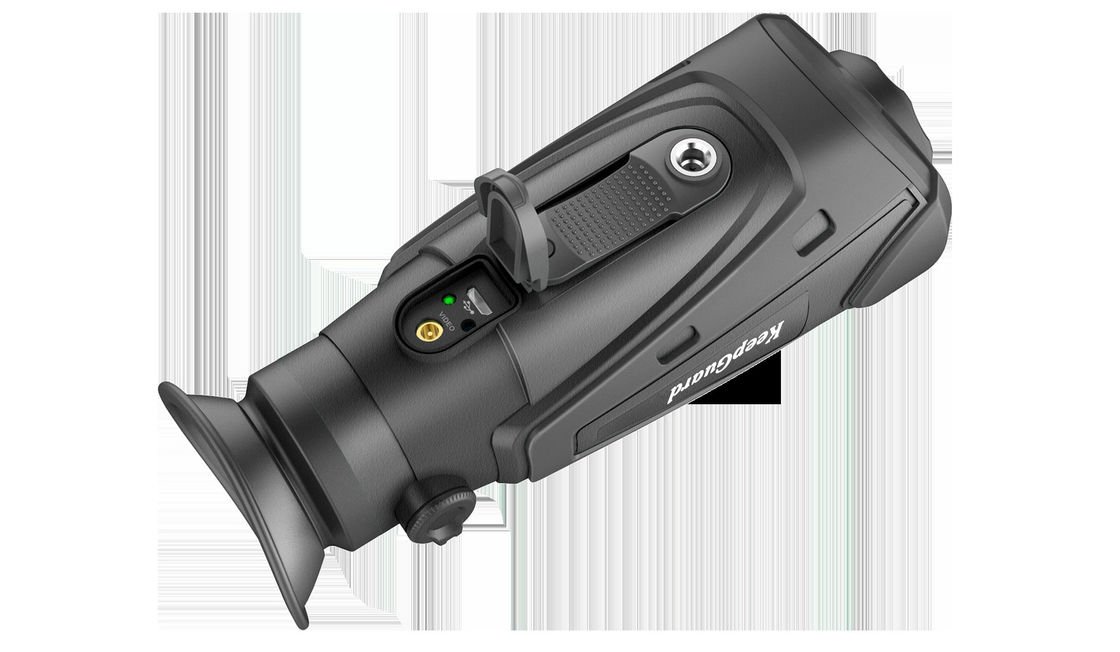

Thermal Imaging Monocular Details


Multi Functional Thermal Imaging Monocular For Fire Fighting / Outdoor 0
