| Place of Origin: | GUANGDONG |
| Brand Name: | KEEPGUARD |
| Certification: | FCC CE ROHS |
| Model Number: | KG510IR |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 20 PCS PER CARTON |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 PCS PER WEEK |
| Name: | Thermal Spotting Scope | Feature: | Detect Further |
|---|---|---|---|
| Spectral Range: | 8μm~14 μm | Focus: | 19mm |
| Application: | Military Thermal Monocular | FOV: | 19.0°×14.5° |
| Screen: | Colorful 0.2″LCOS | Viewfinder: | Monocular, Diopter Adjustable±4 |
| High Light: | thermal infrared monocular,infrared thermal scope |
||

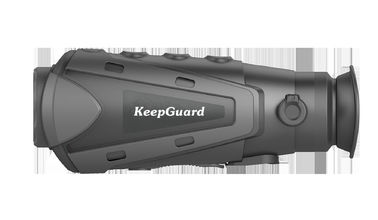

Detect Further Thermal Spotting Scope , OEM Military Thermal Monocular
Thermal Spotting Scope Application
Military
Thermal imaging is able to show images that give off heat such as human bodies.The military uses night vision for many purposes. Soldiers on the ground use night vision while defending an area or while scanning for opposition. In addition, tanks use night vision devices for the same reason. Thermal imaging is used in the military on a larger scale.
Thermal Spotting Scope Features and Benefits
·Wi-Fi for remote control,to display synchronously,take photos and videos
·Easy operation with only three buttons Silent and lightproof design to prevent exposure Built-in batery life up to 5h,external power supply available
·lluminator or laser pointer or neither
·IP66 protection and 1m drop test passed to suit the wild
Thermal Spotting Scope Parameters
| Item | KG510IR N1 | KG510IR N2 | KG510IR N2 WIFI |
| Detector | |||
| Detector Type | 400 ×300@17 μm | ||
| Spectral Range | 8μm~14 μm | ||
| Lens | |||
| Focus | 19mm | 25mm | |
| Focusing | free | Manual | |
| FOV | 19.0°×14.5° | 14.6°×11.1° | |
| Screen | Colorful 0.2″LCOS | ||
| Viewfinder | Monocular, diopter adjustable±4 | ||
| Image | |||
| Frame | 50Hz | ||
| Digital Zoom | ×2, ×4 | ||
| Color Palette | Black hot, white hot, red hot 1, red hot 2, red hot 3 | ||
| Fuctions | |||
| Photograph | × | × | × |
| Additional functions | Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
| Cross cursor | √ | √ | √ |
| Image enhancement | × | × | √ |
| Wi -Fi | × | × | √ |
| Zoom | √ | √ | √ |
| Freeze | √ | √ | × |
| Charging indicator | √ | √ | √ |
| Active indicator | √ | × | √ |
| Power | |||
| Battery | Internal Li -ion battery,3.7V,3200mAh | ||
| Working Time | ≥5h | ||
| Adapter | Standard USB power adapter, max 10W | ||
| Interface | |||
| USB | Charging | ||
| Video Output | MCX Connector,PAL /NTSC | ||
| Environment Characteristics | |||
| Working Temperature | -10℃~50℃ | ||
| Storage Temperature | -30℃~60℃ | ||
| Humidity | 10%~95% | ||
| Shock | 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6 | ||
| Encapsulation | IP66 | ||
| Drop | 1m drop | N/A | |
| Physical Parameter | |||
| Weight | 350g | 375g | |
| Size | 160mm ×67mm ×62mm | 168mm ×67mm ×62mm | |
| Package | |||
| Standard accessories | thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual | ||
| Optional accessories | N/A | 40mm extender lens (FOV:9.3°×7.0°) | |
