Drop Resistance Thermal Imaging Monocular Real Time Browsing , Recording
Product Details:
| Place of Origin: | GUANGDONG |
| Brand Name: | KEEPGUARD |
| Certification: | FCC CE ROHS |
| Model Number: | KG510IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 20 PCS PER CARTON |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 PCS PER WEEK |
|
Detail Information |
|||
| Name: | Thermal Imaging Monocular | Detector Type: | 400 ×300@17 μm |
|---|---|---|---|
| Feature: | Drop Resistance | Focus: | 19mm |
| Focusing: | Free | Function: | Real Time Browsing , Recording |
| Screen: | Colorful 0.2″LCOS | Viewfinder: | Monocular, Diopter Adjustable±4 |
| Highlight: | thermal infrared monocular,thermal vision monocular |
||
Product Description
Drop Resistance Thermal Imaging Monocular Real Time Browsing , Recording
Thermal Imaging Monocular Application
Thermal Imaging Monocular has seen much more widespread adoption in various industries and applications, including binoculars for hunting and law enforcement that were once dominated by traditional night vision technology.
Thermal Imaging Monocular Features and Benefits
·Wi-Fi for remote control,to display synchronously,take photos and videos
·Imaging better,detect further,highlight the target easier
·Easy operation with only three buttons Silent and lightproof design to prevent exposure Built-in batery life up to 5h,external power supply available
·lluminator or laser pointer or neither
Thermal Imaging Monocular Parameters
| Item | KG510IR N1 | KG510IR N1 WIFI | KG510IR N2 |
| Detector | |||
| Detector Type | 400 ×300@17 μm | ||
| Spectral Range | 8μm~14 μm | ||
| Lens | |||
| Focus | 19mm | 25mm | |
| Focusing | free | Manual | |
| FOV | 19.0°×14.5° | 14.6°×11.1° | |
| Screen | Colorful 0.2″LCOS | ||
| Viewfinder | Monocular, diopter adjustable±4 | ||
| Image | |||
| Frame | 50Hz | ||
| Digital Zoom | ×2, ×4 | ||
| Color Palette | Black hot, white hot, red hot 1, red hot 2, red hot 3 | ||
| Fuctions | |||
| Photograph | × | × | × |
| Additional functions | Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
| Cross cursor | √ | √ | √ |
| Image enhancement | × | √ | × |
| Wi -Fi | × | √ | × |
| Zoom | √ | √ | √ |
| Freeze | √ | × | √ |
| Charging indicator | √ | √ | √ |
| Active indicator | √ | √ | × |
| Power | |||
| Battery | Internal Li -ion battery,3.7V,3200mAh | ||
| Working Time | ≥5h | ||
| Adapter | Standard USB power adapter, max 10W | ||
| Interface | |||
| USB | Charging | ||
| Video Output | MCX Connector,PAL /NTSC | ||
| Environment Characteristics | |||
| Working Temperature | -10℃~50℃ | ||
| Storage Temperature | -30℃~60℃ | ||
| Humidity | 10%~95% | ||
| Shock | 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6 | ||
| Encapsulation | IP66 | ||
| Drop | 1m drop | N/A | |
| Physical Parameter | |||
| Weight | 350g | 375g | |
| Size | 160mm ×67mm ×62mm | 168mm ×67mm ×62mm | |
| Package | |||
| Standard accessories | thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual | ||
| Optional accessories | N/A | 40mm extender lens (FOV:9.3°×7.0°) | |
| Detection Range | |||
| Human :1.8m ×0.5m | 500m | 700m | |
| Vehicle:2.3m ×2.3m | 1300m | 1700m | |
| Recognition Range | |||
| Human :1.8m ×0.5m | 300m | 350m | |
| Vehicle:2.3m ×2.3m | 500m | 700m | |

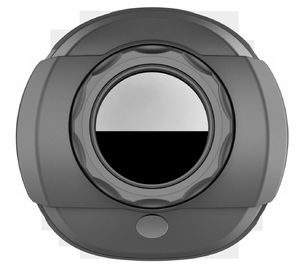

Thermal Imaging Monocular Details
