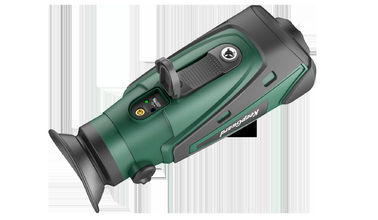

Long Distance Thermal Imaging Monocular For Hunting / Law Enforcement

Category:
Thermal Imaging Monocular
Price:
Negotiation
Payment Method:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Specifications
Name:
Thermal Imaging Monocular
Feature:
Long Distance
Spectral Range:
8μm~14 μm
Focus:
19mm
Focusing:
Free
FOV:
19.0°×14.5°
Screen:
Colorful 0.2″LCOS
Application:
Hunting / Law Enforcement
High Light:

infrared thermal scope

,

thermal vision monocular

Introduction

Long Distance Thermal Imaging Monocular For Hunting / Law Enforcement



Thermal Imaging Monocular Introduce



Thermal Imaging Monocular Can be Connected to mobile APP via Wi-Fi, the new KG510lR series canbe remote controlled to display synchronously, take photos and videos. Compared with the last version, it provides superior image, longer detection range andadvanced algorithm, helping to pick up the targets.



Thermal Imaging Monocular Features and Benefits


·Imaging better,detect further,highlight the target easier
·Easy operation with only three buttons Silent and lightproof design to prevent exposure Built-in batery life up to 5h,external power supply available
·lluminator or laser pointer or neither
·IP66 protection and 1m drop test passed to suit the wild



Thermal Imaging Monocular Parameters



Item KG510IR N1 KG510IR N1 WIFI KG510IR N2 KG510IR N2 WIFI
Detector
Detector Type 400 ×300@17 μm
Spectral Range 8μm~14 μm
Lens
Focus 19mm 25mm
Focusing free Manual
FOV 19.0°×14.5° 14.6°×11.1°
Screen Colorful 0.2″LCOS
Viewfinder Monocular, diopter adjustable±4
Frame 50Hz
Digital Zoom ×2, ×4
Color Palette Black hot, white hot, red hot 1, red hot 2, red hot 3
Fuctions
Photograph × × × ×
Additional functions Illuminator or laser
pointer or neither
Illuminator or laser
pointer or neither
Illuminator or laser
pointer or neither
Illuminator or laser
pointer or neither
Cross cursor
Image enhancement × ×
Wi -Fi × ×
Zoom
Freeze × ×
Charging indicator
Active indicator ×
Power
Battery Internal Li -ion battery,3.7V,3200mAh
Working Time ≥5h
Adapter Standard USB power adapter, max 10W
Interface
USB Charging
Video Output MCX Connector,PAL /NTSC
Environment Characteristics
Working Temperature -10℃~50℃
Storage Temperature -30℃~60℃
Humidity 10%~95%
Shock 10Hz~150Hz~10Hz 0.15mm IEC60068 -2-6
Encapsulation IP66
Drop 1m drop N/A
Physical Parameter
Weight 350g 375g
Size 160mm ×67mm ×62mm 168mm ×67mm ×62mm
Package
Standard accessories thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/ soft drawstring bag/ user manual
Optional accessories N/A 40mm extender lens (FOV:9.3°×7.0°)
Detection Range
Human :1.8m ×0.5m 500m 700m
Vehicle:2.3m ×2.3m 1300m 1700m
Recognition Range
Human :1.8m ×0.5m 300m 350m
Vehicle:2.3m ×2.3m 500m 700m



FAQ



1) When can I get the price?

We usually quote within 24 hours after we receive your enquiry. If you are very urgent to get the price, please contact with us or tell us in your email so that we will deal with your enquiry priority.

2) How can I get a sample to check your products quality?

After price confirmation, you can require and buy samples to check our products quality. After confirming the sample order,I will arrange to send sample to you asap.

3) How long can l expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in

2-3 days.

The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

4) Does your factory can customized products?

Of course. We can make customized products for you according to your requirement. Please feel free to contact with us for more details.

5) What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Generally speaking, the mass production will be sent to you via express and arrive in 15-20 workdays.

6) Can I visit your factory and arrange car to pick me up?

Yes, it is our honor to invite you to visit our factory and we are glad to arrange car to pick you up when you arrive at Shenzhen, China.
